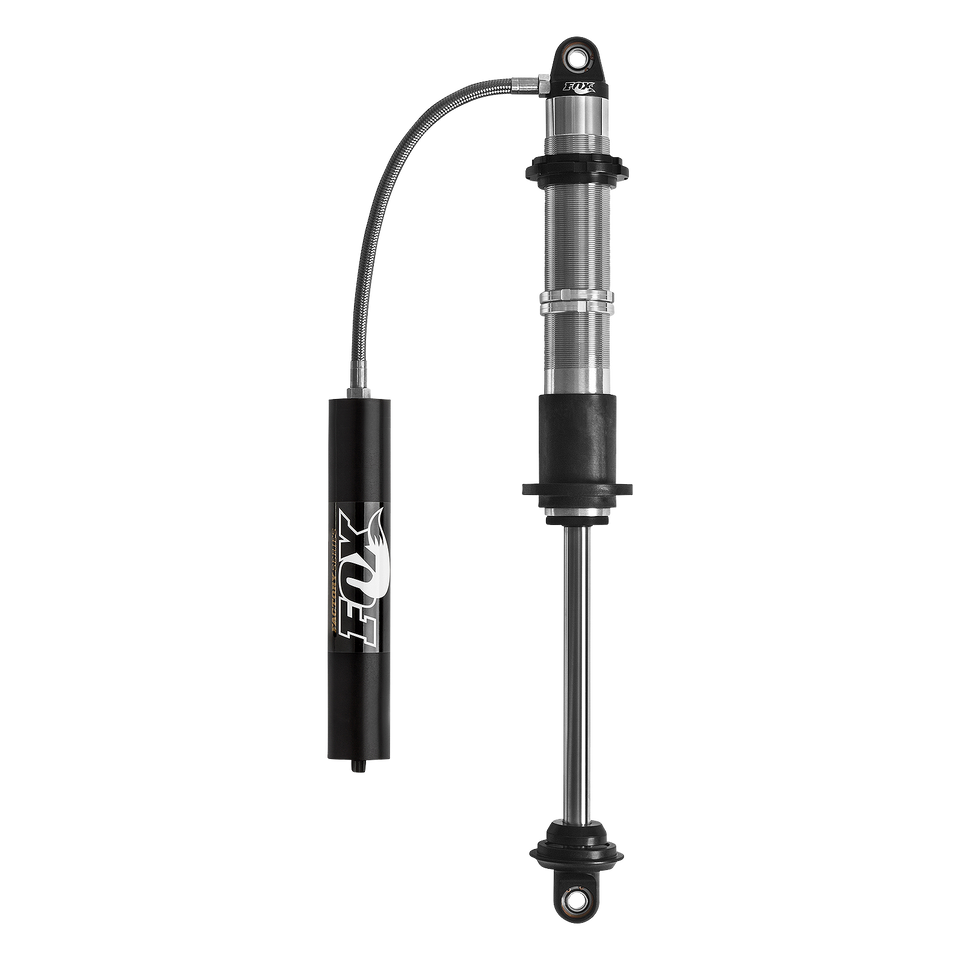

FACTORY RACE 2.0 X 16.0 COIL-OVER EMULSION SHOCK

$409.95

FACTORY RACE 2.0 X 16.0 COIL-OVER EMULSION SHOCK

Low Stock

Find a Retailer

Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.

PART NUMBER 980-02-057
SERIES Factory Race
TRAVEL 16
BODY Smooth bore and honed seamless steel
BODY PLATING Zinc plated for a long-lasting finish
COMPONENTS Black anodized, CNC machined 6061-T6 billet aluminum
PISTON 7087 hard-anodized high-flow aluminum piston*
VALVING Tunable, velocity sensitive deburred valve shims
SEALS High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal*
BEARINGS Spherical, PFTE-lined, heat-treated alloy steel
EXTENDED LENGTH 40.1
COMPRESSED LENGTH 24.1
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
