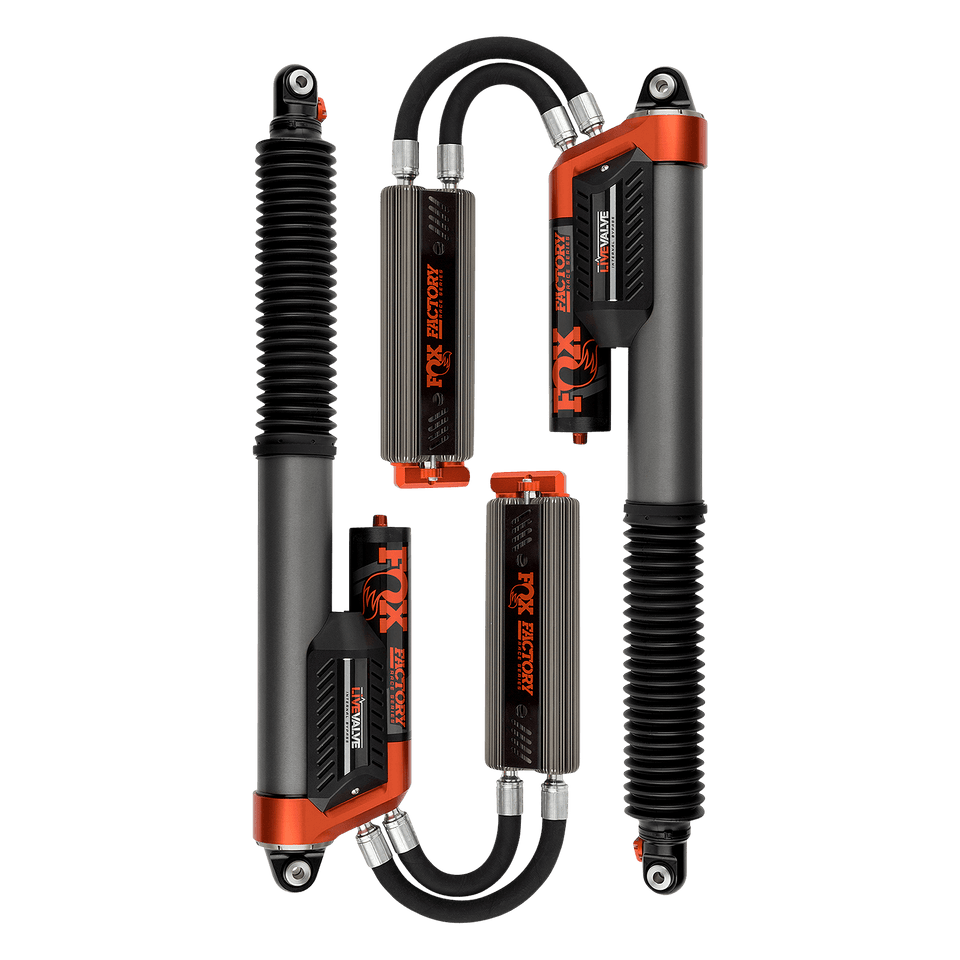

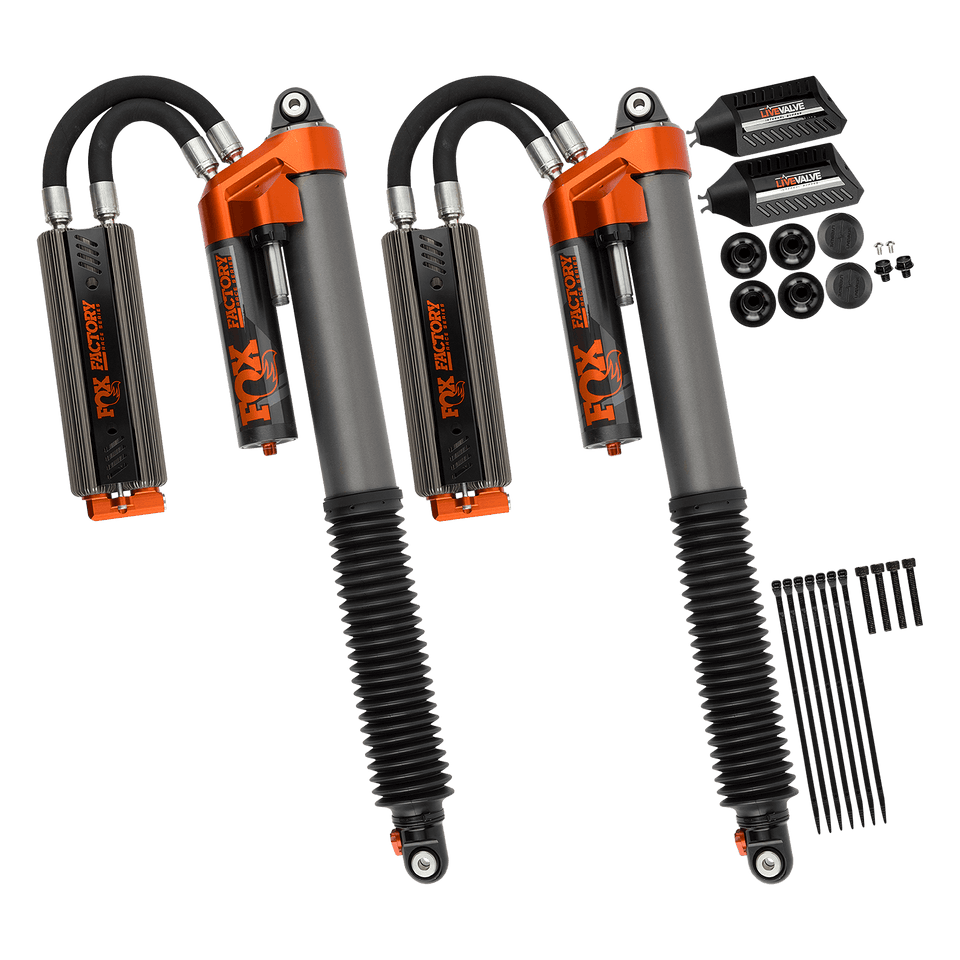

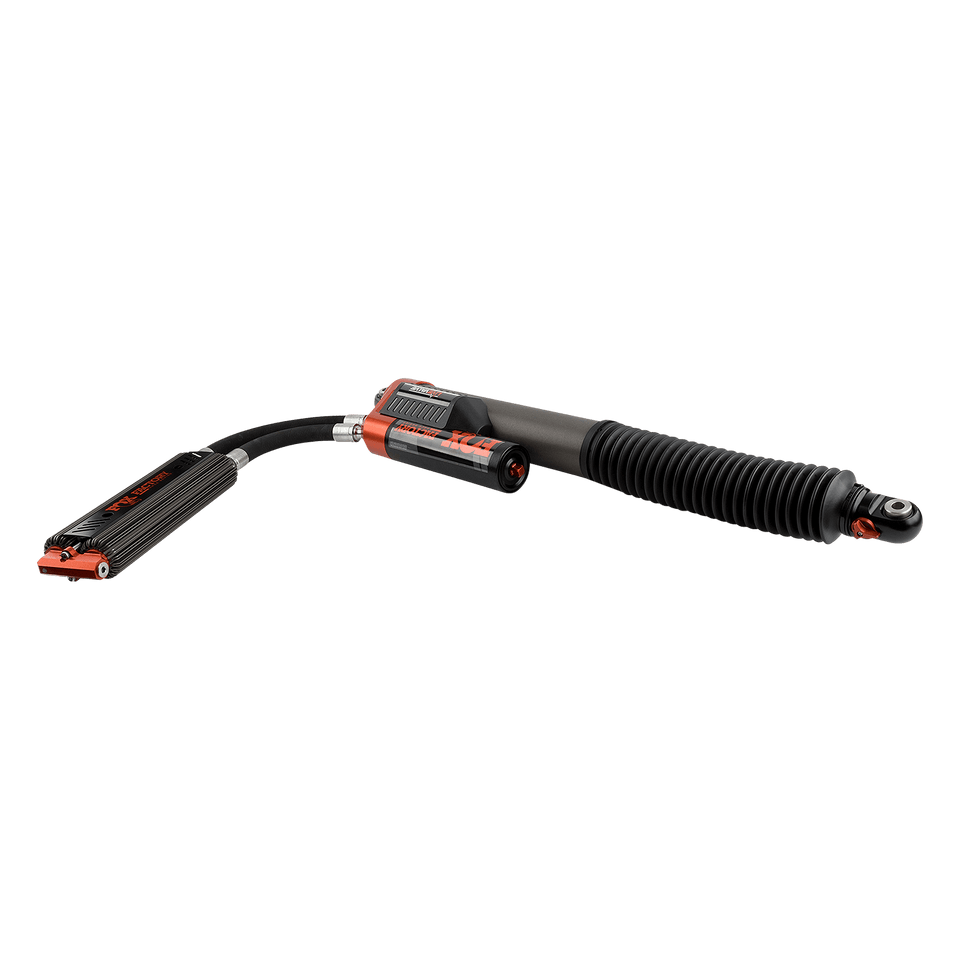

FACTORY RACE SERIES 3.0 LIVE VALVE INTERNAL BYPASS PIGGYBACK (PAIR) - ADJUSTABLE

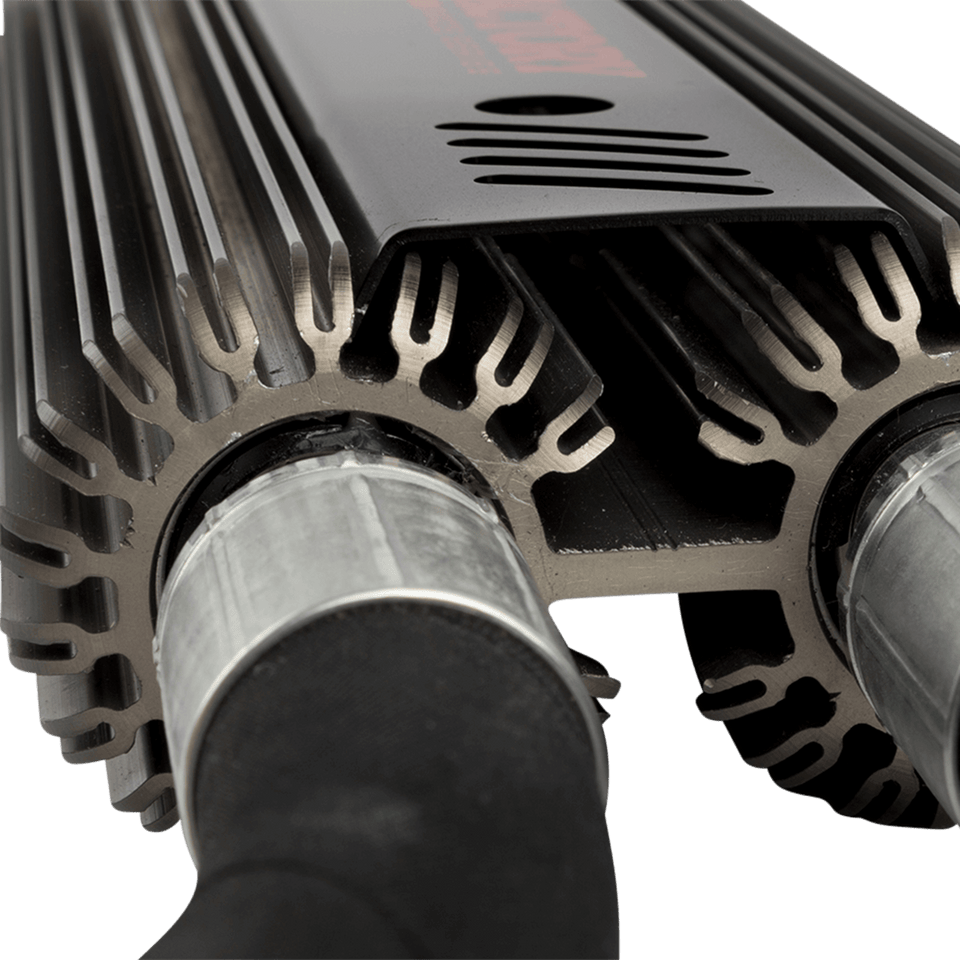

By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

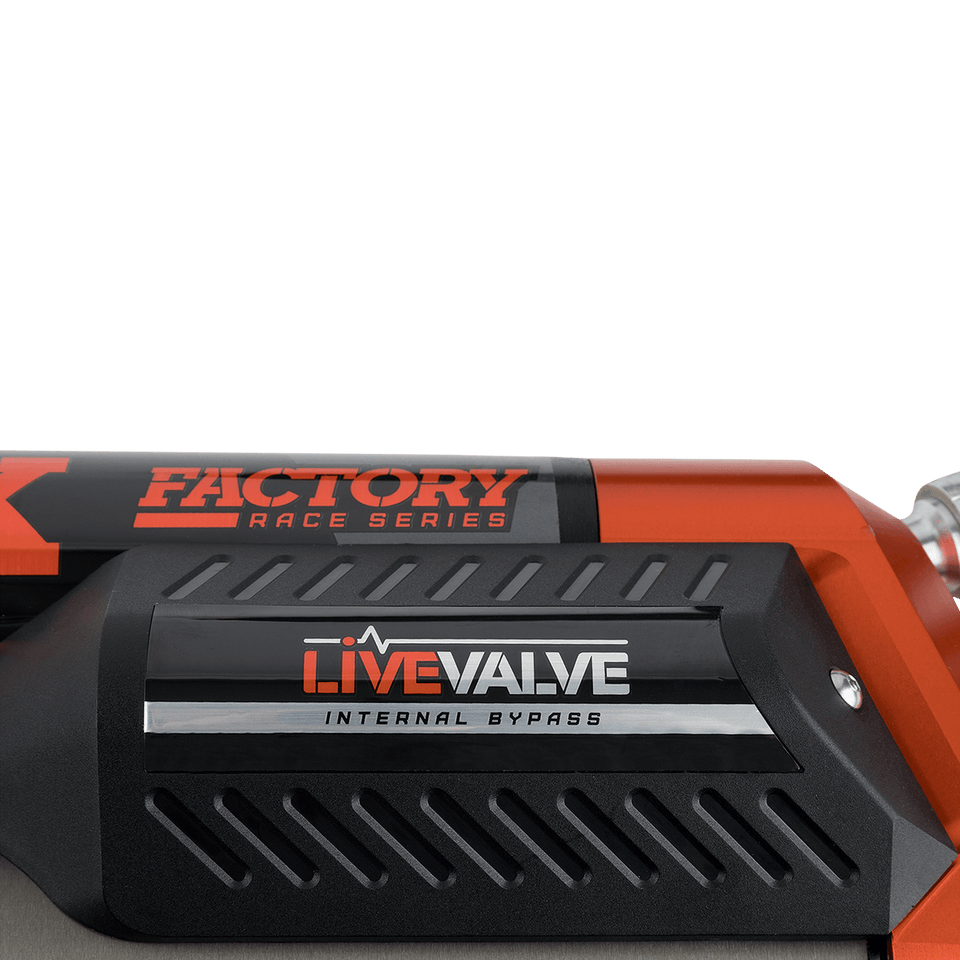

NEW Live Valve semi active technology equipped, plug and play integration to factory electronics

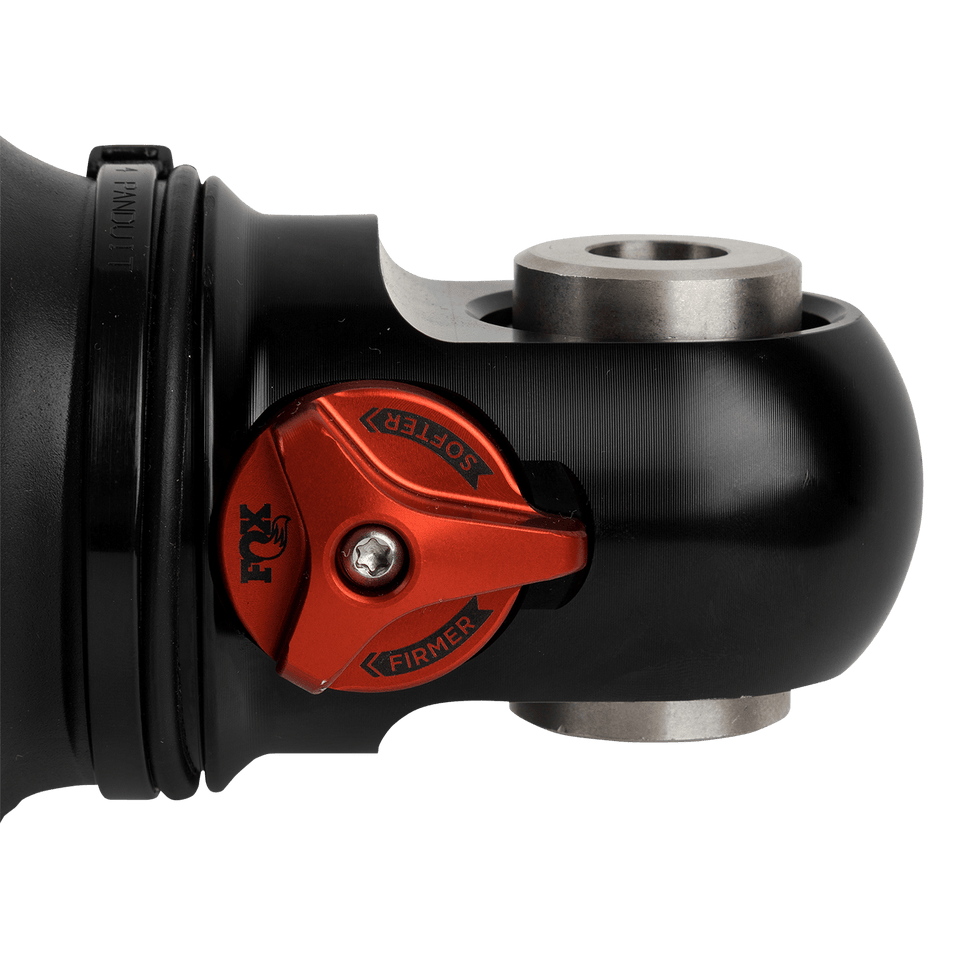

NEW Rebound and compression adjustable via Quick Switch Technology (QS3)

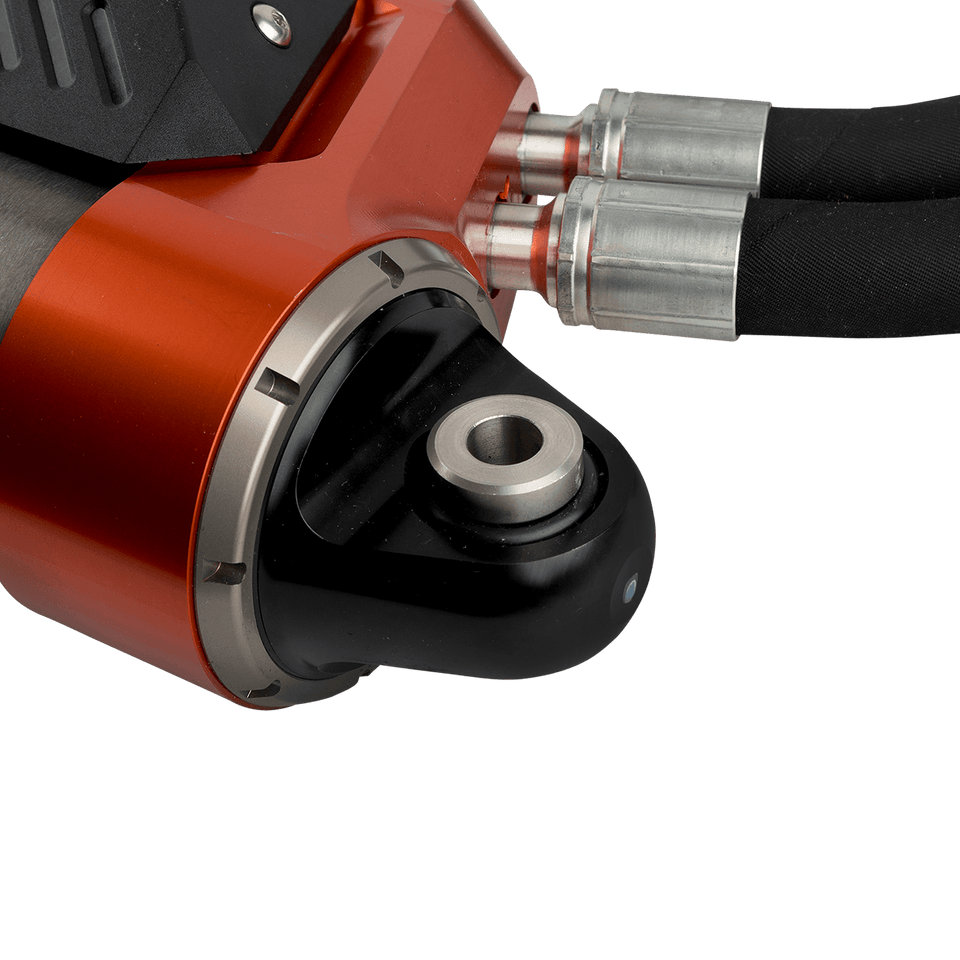

NEW Rotatable hose fittings for easy installation
FOX patented, position-sensitive Internal Bypass damping technology
883-09-153 Also Fits
Year | Make | Model | Drive Type | Position | Lift Height | Comments | Price |
---|---|---|---|---|---|---|---|
2019 | Ford | F-150 Raptor | All | Rear | 0-1 | External Cooling System (ECS2) Mounting Hardware Included | $3,899.95 |
2020 | Ford | F-150 Raptor | All | Rear | 0-1 | External Cooling System (ECS2) Mounting Hardware Included | $3,899.95 |
PART NUMBER | 883-09-153 |
SERIES | Factory Race |
TRAVEL | 12.19 |
BODY | 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel |
BODY PLATING | Hard-anodized for a durable finish |
COMPONENTS | Anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 7/8" hard chrome plated 17-4 H900 stainless steel |
PISTON | Hard anodized 6061-T6 billet aluminum high flow race piston |
VALVING | Application-specific valving to maximize performance |
SEALS | Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions |
BEARINGS | PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth |
EXTENDED LENGTH | 31.18 |
COMPRESSED LENGTH | 18.99 |
TOP MOUNT | Eyelet |
BOTTOM MOUNT | Eyelet |
FITMENT NOTES | External Cooling System (ECS2) Mounting Hardware Included |
PART NUMBER | 883-09-153 |
SERIES | Factory Race |
TRAVEL | 12.19 |
BODY | 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel |
BODY PLATING | Hard-anodized for a durable finish |
COMPONENTS | Anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 7/8" hard chrome plated 17-4 H900 stainless steel |
PISTON | Hard anodized 6061-T6 billet aluminum high flow race piston |
VALVING | Application-specific valving to maximize performance |
SEALS | Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions |
BEARINGS | PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth |
EXTENDED LENGTH | 31.18 |
COMPRESSED LENGTH | 18.99 |
TOP MOUNT | Eyelet |
BOTTOM MOUNT | Eyelet |
FITMENT NOTES | External Cooling System (ECS2) Mounting Hardware Included |
