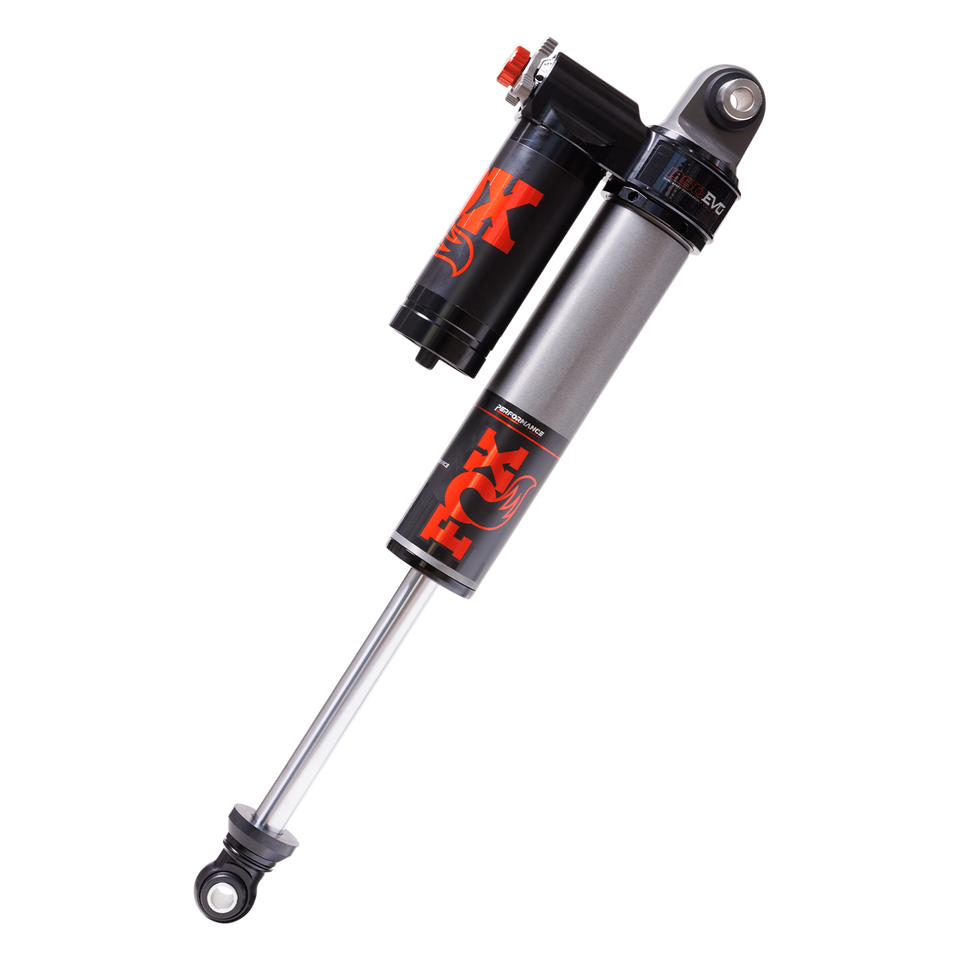

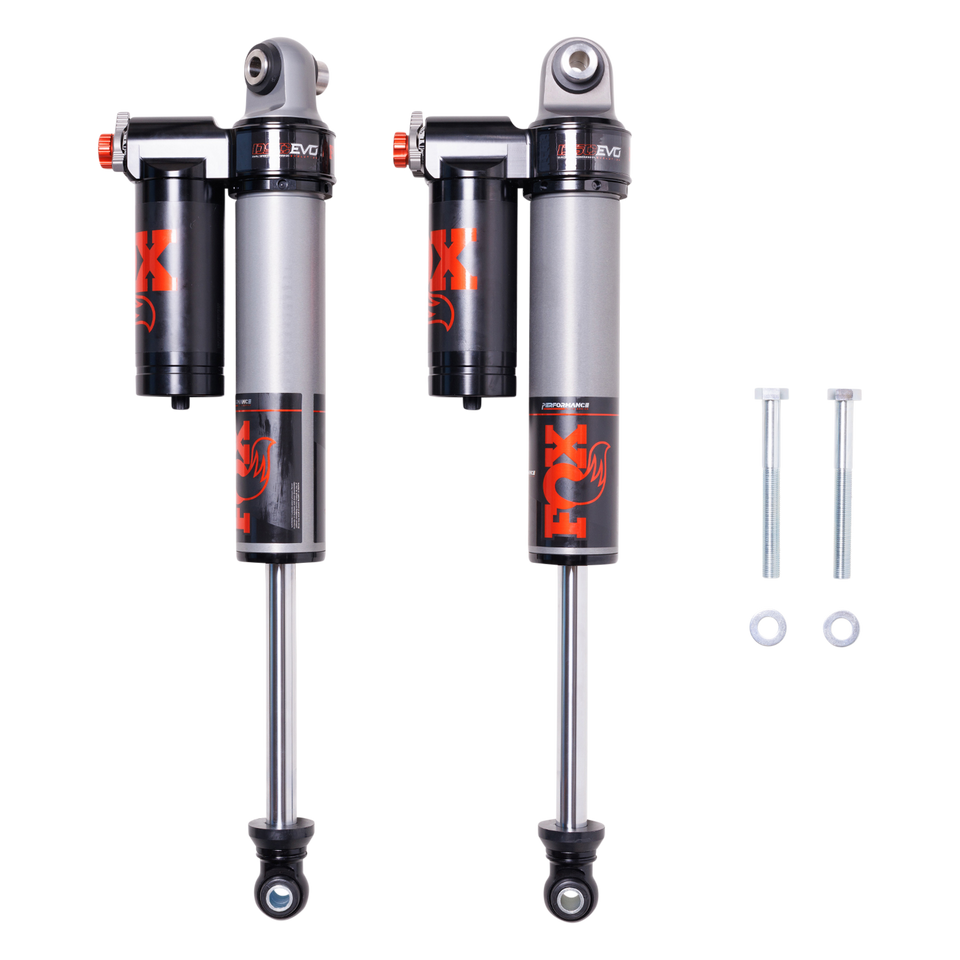

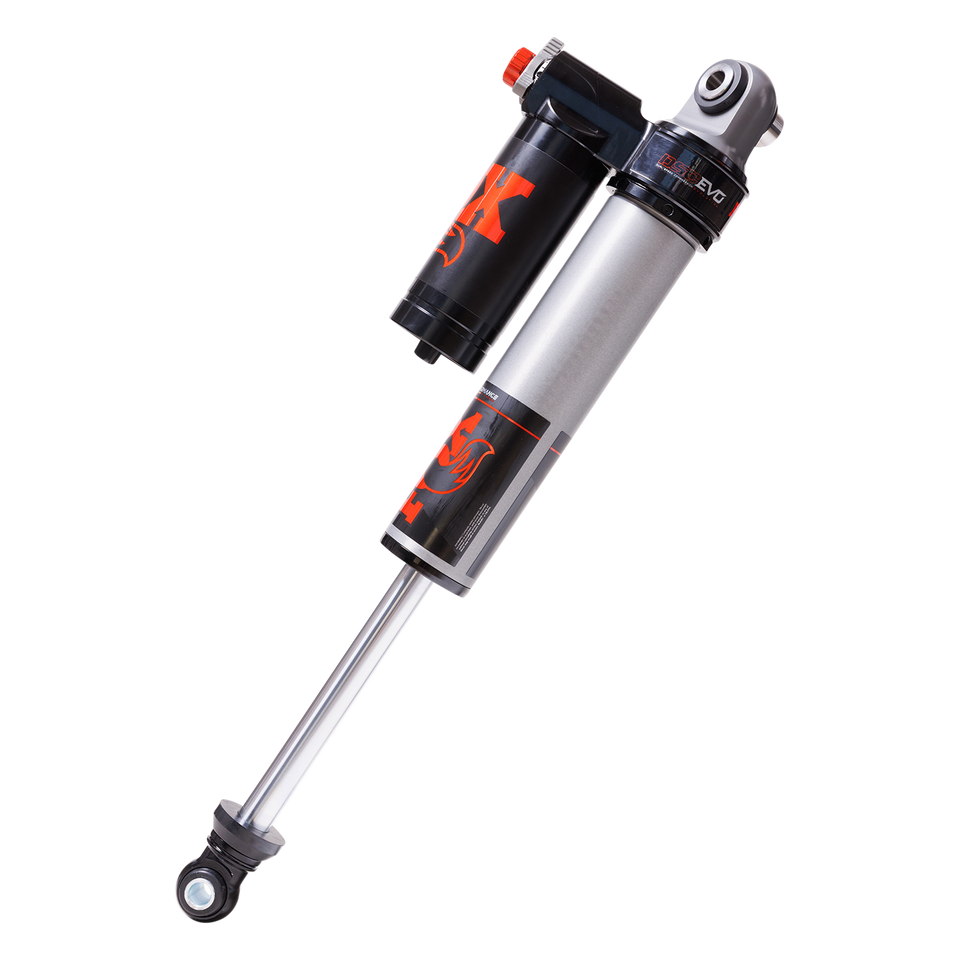

MERCEDES SPRINTER 2500/3500 | 2.5 PERFORMANCE ELITE SERIES
The Mercedes Sprinter is known for it's carrying capacity and versatility. FOX 2.5 Performance Elite Series shocks for the van dramatically improve handling and driver confidence even when the vehicle's packed with gear.

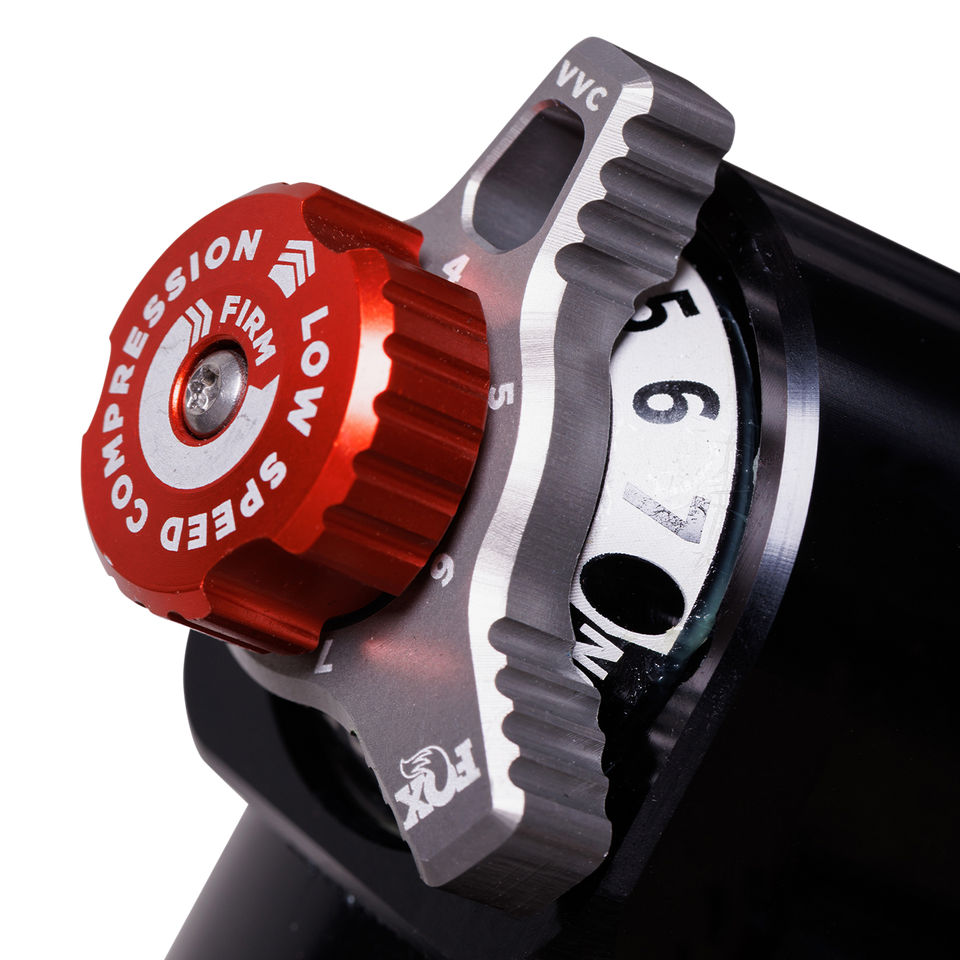

Type III coating prevents corrosion and wear of the 2.5-inch steel bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.
DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stakc to adjust high-speed damping but rather changes the leverage ratio of the shims as they flex.
883-26-150 Also Fits
| Year | Make | Model | Drive Type | Position | Comments | Price |
|---|---|---|---|---|---|---|
| 2015 | Mercedes-Benz | Sprinter 2500 | 4WD | Rear | Lift: 0-1.5 | $0.00 |
| 2016 | Mercedes-Benz | Sprinter 2500 | 4WD | Rear | Lift: 0-1.5 | $0.00 |
| 2017 | Mercedes-Benz | Sprinter 2500 | 4WD | Rear | Lift: 0-1.5 | $0.00 |
| 2018 | Mercedes-Benz | Sprinter 2500 | 4WD | Rear | Lift: 0-1.5 | $0.00 |
| PART NUMBER | 883-26-150 |
| FEATURES |
2.5 impact-extruded and CNC machined 6061-T6 TYPE III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TRAVEL | 8.02 |
| EXTENDED LENGTH | 23.21 |
| COMPRESSED LENGTH | 15.19 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 883-26-150 |
| FEATURES |
2.5 impact-extruded and CNC machined 6061-T6 TYPE III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TRAVEL | 8.02 |
| EXTENDED LENGTH | 23.21 |
| COMPRESSED LENGTH | 15.19 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
883-26-150 Also Fits
| Year | Make | Model | Drive Type | Position | Comments | Price |
|---|---|---|---|---|---|---|
| 2015 | Mercedes-Benz | Sprinter 2500 | 4WD | Rear | Lift: 0-1.5 | $0.00 |
| 2016 | Mercedes-Benz | Sprinter 2500 | 4WD | Rear | Lift: 0-1.5 | $0.00 |
| 2017 | Mercedes-Benz | Sprinter 2500 | 4WD | Rear | Lift: 0-1.5 | $0.00 |
| 2018 | Mercedes-Benz | Sprinter 2500 | 4WD | Rear | Lift: 0-1.5 | $0.00 |
