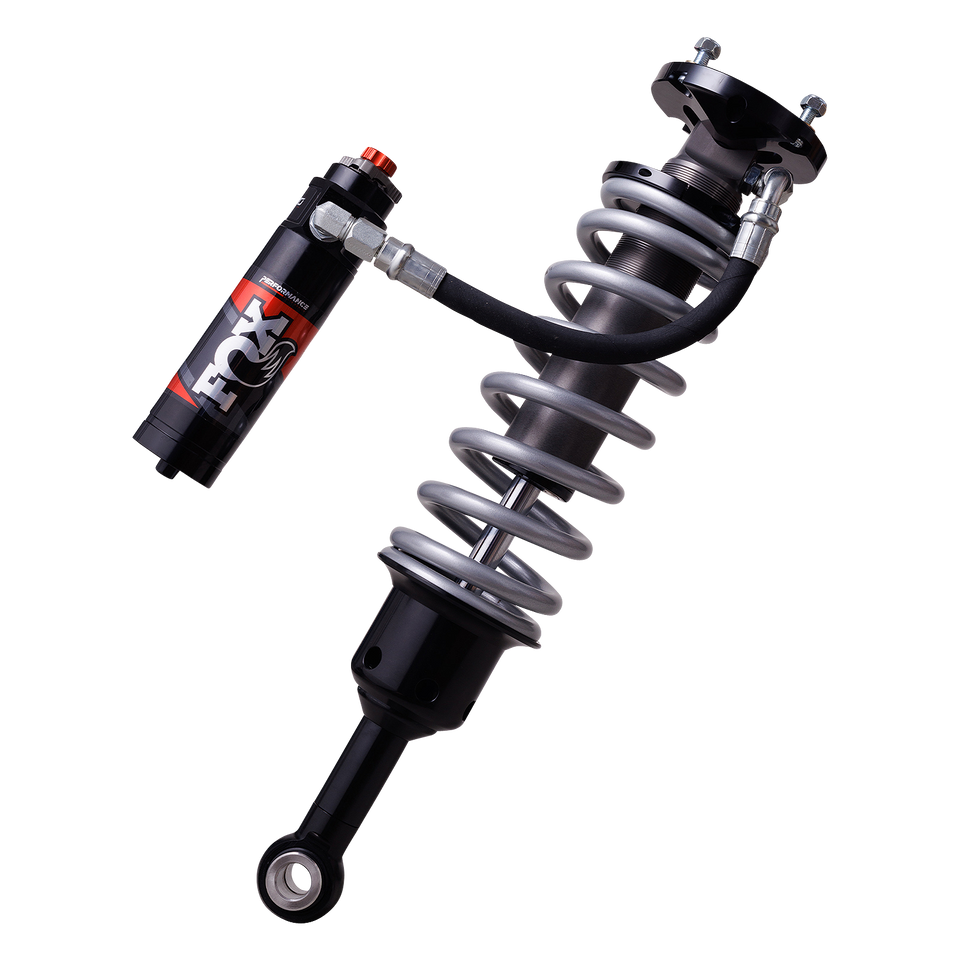

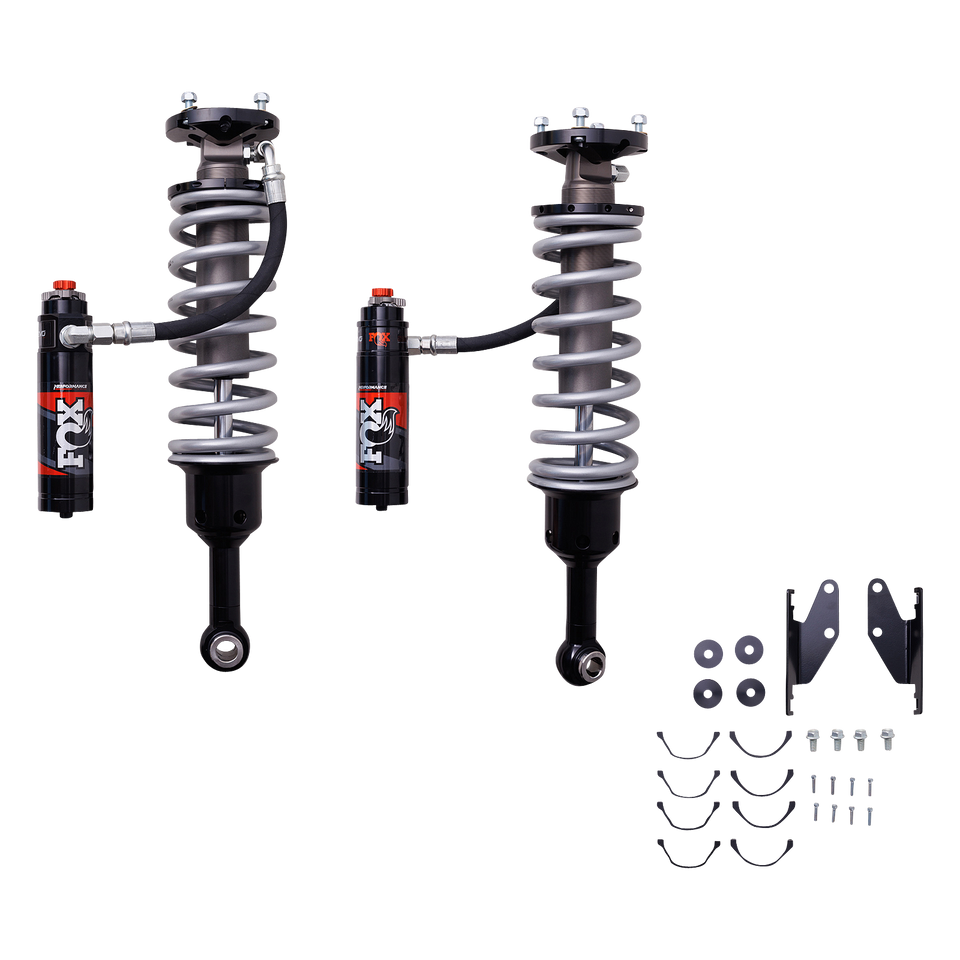

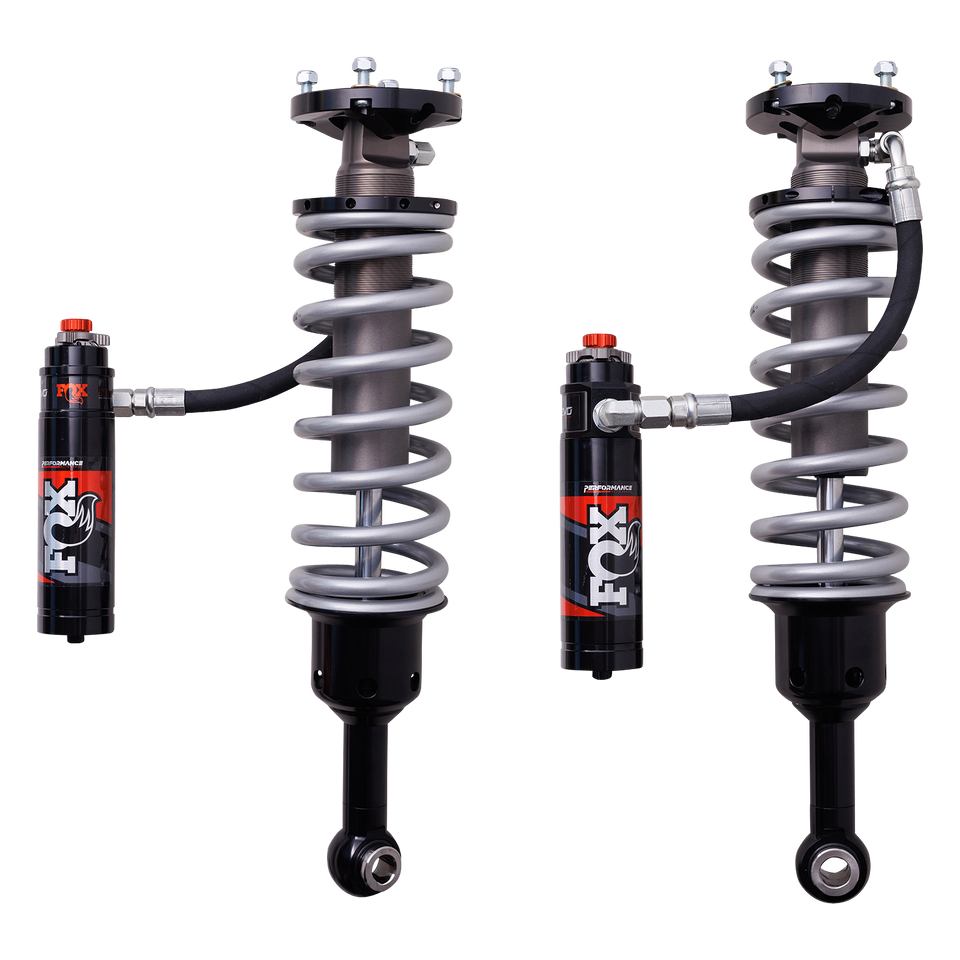

PERFORMANCE ELITE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR) - ADJUSTABLE
PART NUMBER | 883-06-230 |
FEATURES |

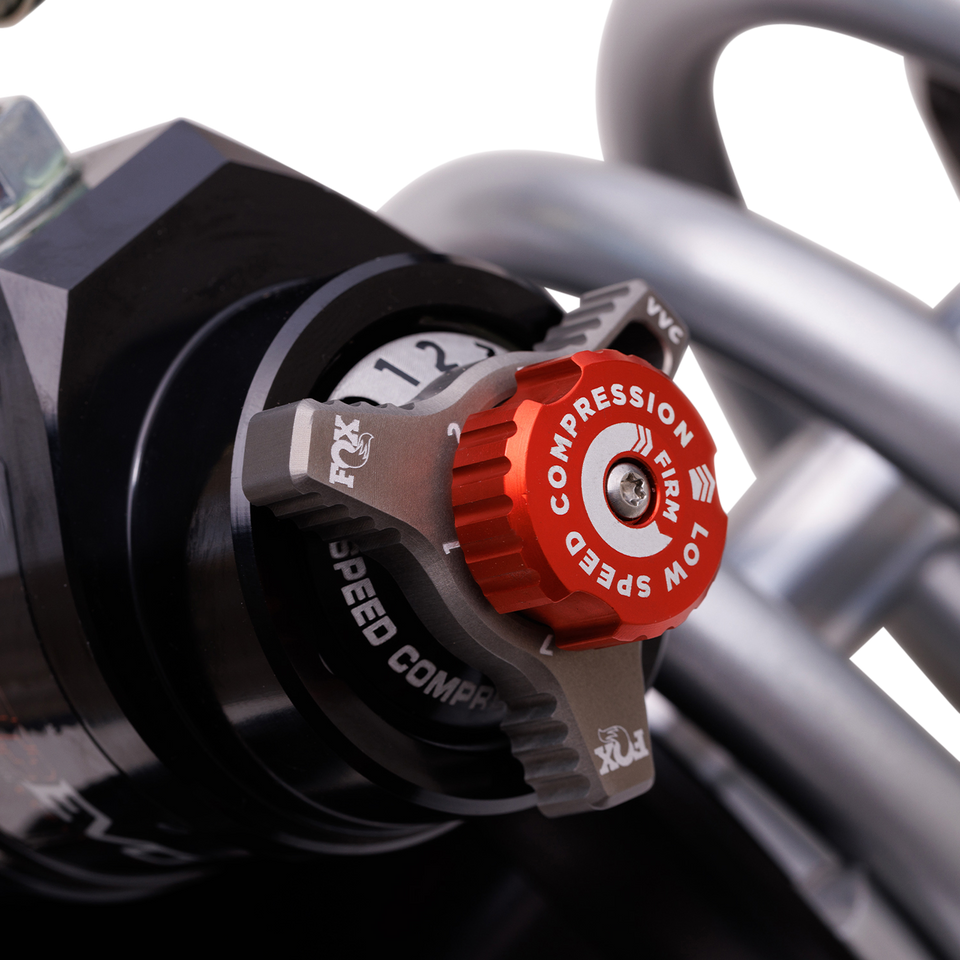

2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
SERIES | Performance Elite |
TRAVEL | 6.67 |
BODY | 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
BODY PLATING | Hard-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 7/8" hard chrome plated steel shafts |
PISTON | 6061-T6 hard-anodized, high flow aluminum piston |
EXTENDED LENGTH | 24.98 |
COMPRESSED LENGTH | 18.31 |
TOP MOUNT | OEM |
BOTTOM MOUNT | Eyelet |
PART NUMBER | 883-06-230 |
FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
SERIES | Performance Elite |
TRAVEL | 6.67 |
BODY | 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
BODY PLATING | Hard-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 7/8" hard chrome plated steel shafts |
PISTON | 6061-T6 hard-anodized, high flow aluminum piston |
EXTENDED LENGTH | 24.98 |
COMPRESSED LENGTH | 18.31 |
TOP MOUNT | OEM |
BOTTOM MOUNT | Eyelet |
883-06-230 Also Fits
Year | Make | Model | Drive Type | Position | Lift Height | Comments | Price |
---|---|---|---|---|---|---|---|
2022 | Lexus | LX600 | All | Front | 0-2 | 0-50mm lift | $2,599.95 |
2023 | Lexus | LX600 | All | Front | 0-2 | 0-50mm lift | $2,599.95 |
2024 | Lexus | LX600 | All | Front | 0-2 | 0-50mm lift | $2,599.95 |
2025 | Lexus | LX600 | All | Front | 0-2 | 0-50mm lift | $2,599.95 |
