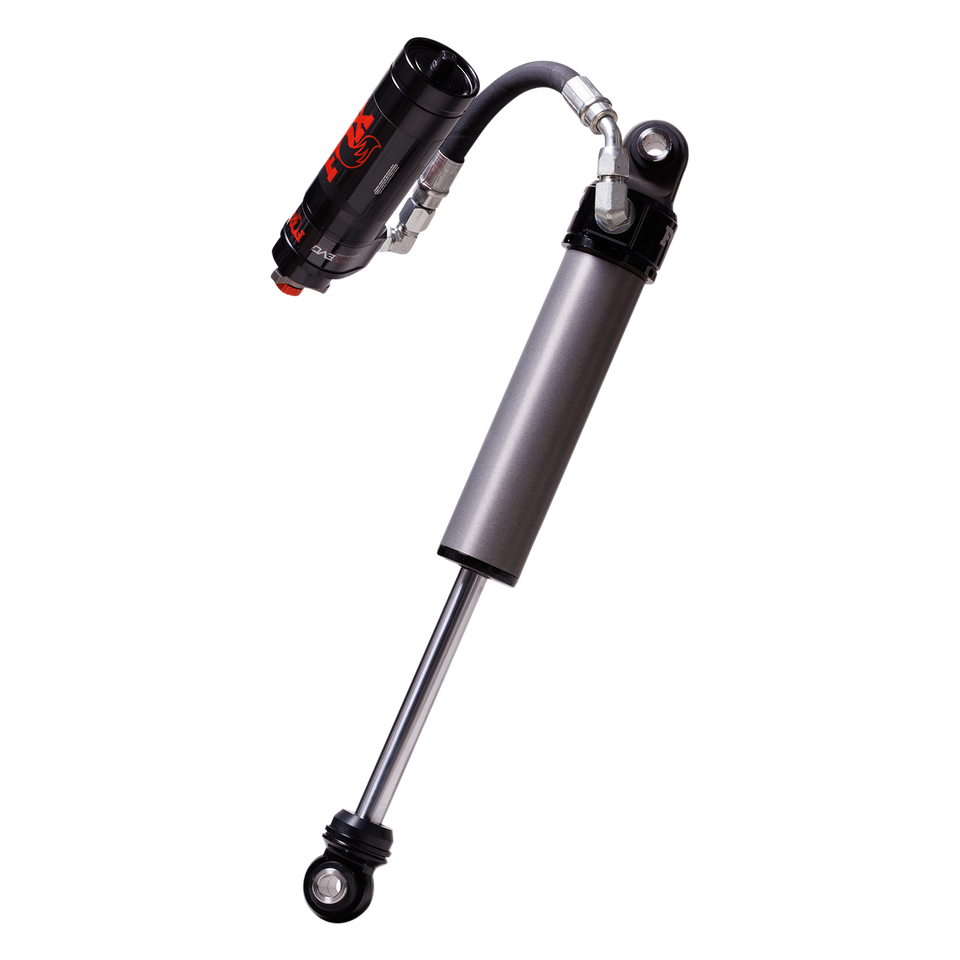

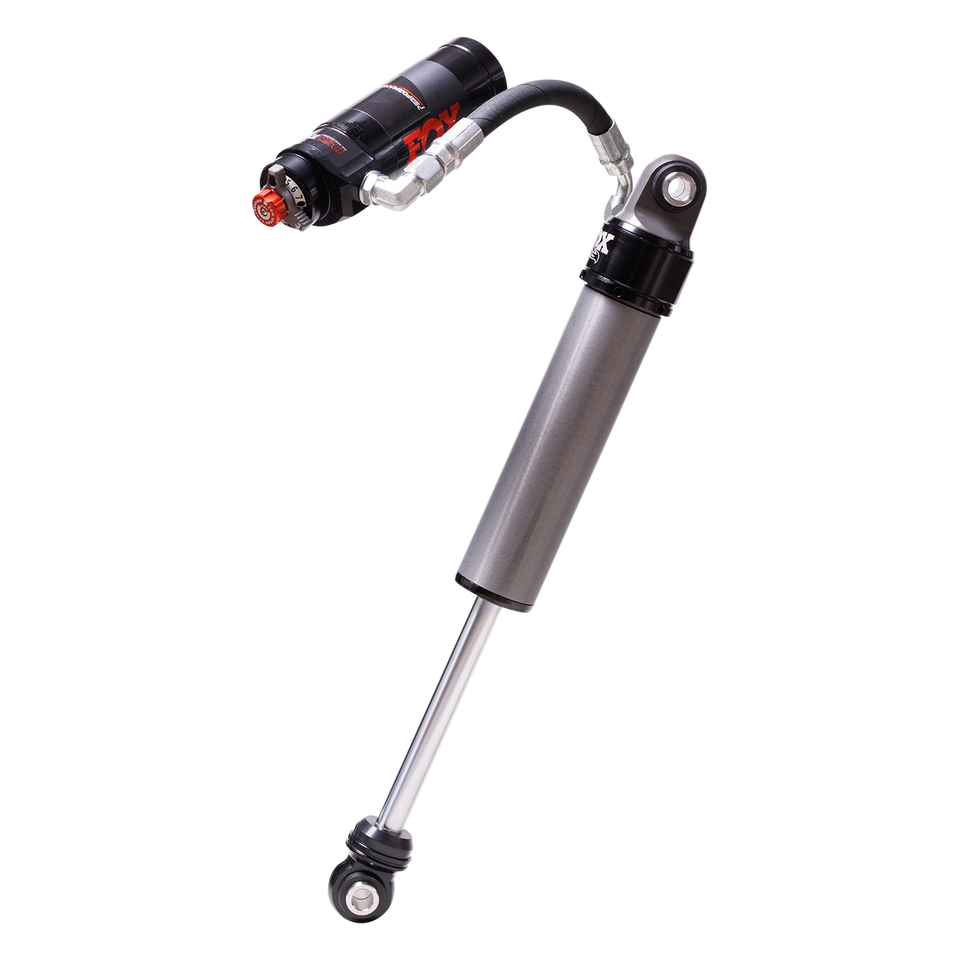

PERFORMANCE ELITE SERIES 2.5 RESERVOIR SHOCK (PAIR) - ADJUSTABLE
FOX Performance Elite Series 2.5 shocks featuring DSC EVO are a bolt-on solution tuned for the INEOS Grenadier. Optimize vehicle performance without compromising OEM reliability and vehicle behavior.

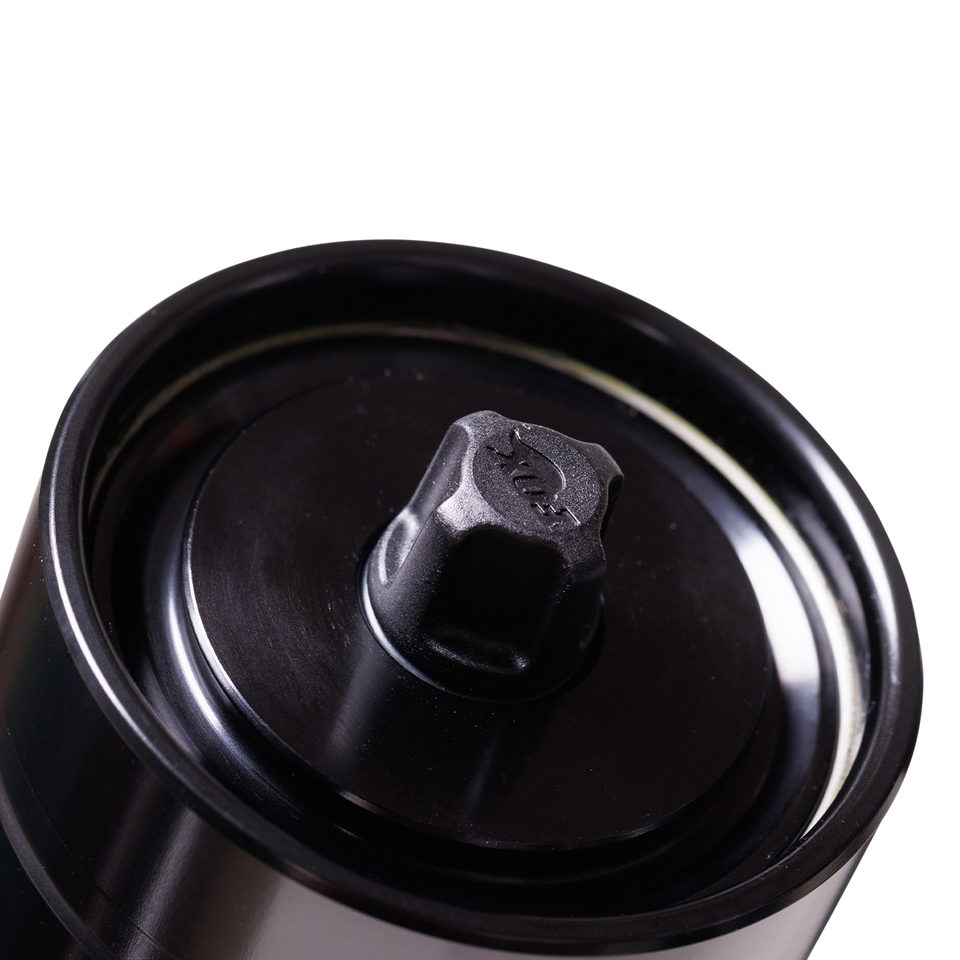

Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity, allow additional shock stroke to maintain available travel, and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.
DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of highspeed compression without sacrificing small-bump sensitivity.
Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and improve on-road manners while remaining comfortable and in control.
PART NUMBER | 883-26-166 |
FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
SERIES | Performance Elite |
TRAVEL | 8.38 |
BODY | 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
BODY PLATING | Hard-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 7/8" hard chrome plated heat-treated alloy steel |
PISTON | Race-developed high-flow piston design |
VALVING | Application specific valving to maximize performance |
SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
EXTENDED LENGTH | 23.22 |
COMPRESSED LENGTH | 14.84 |
TOP MOUNT | Eyelet |
BOTTOM MOUNT | Eyelet |

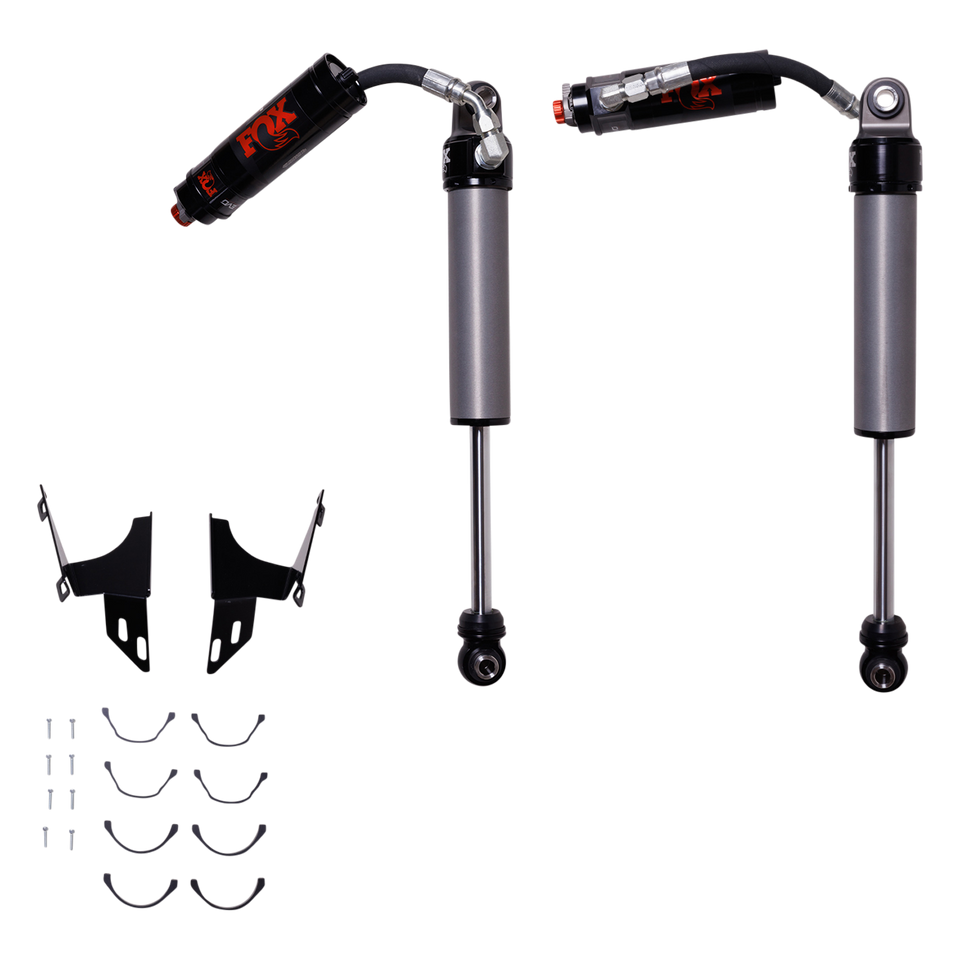

FITMENT NOTES | Includes Reservoir Mounting Bracket |
PART NUMBER | 883-26-166 |
FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
SERIES | Performance Elite |
TRAVEL | 8.38 |
BODY | 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
BODY PLATING | Hard-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 7/8" hard chrome plated heat-treated alloy steel |
PISTON | Race-developed high-flow piston design |
VALVING | Application specific valving to maximize performance |
SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
EXTENDED LENGTH | 23.22 |
COMPRESSED LENGTH | 14.84 |
TOP MOUNT | Eyelet |
BOTTOM MOUNT | Eyelet |
FITMENT NOTES | Includes Reservoir Mounting Bracket |
883-26-166 Also Fits
Year | Make | Model | Position | Price |
---|---|---|---|---|
2024 | INEOS | Grenadier | Front | $1,699.95 |
2025 | INEOS | Grenadier | Front | $1,699.95 |
2025 | INEOS | Grenadier Quartermaster | Front | $1,699.95 |
