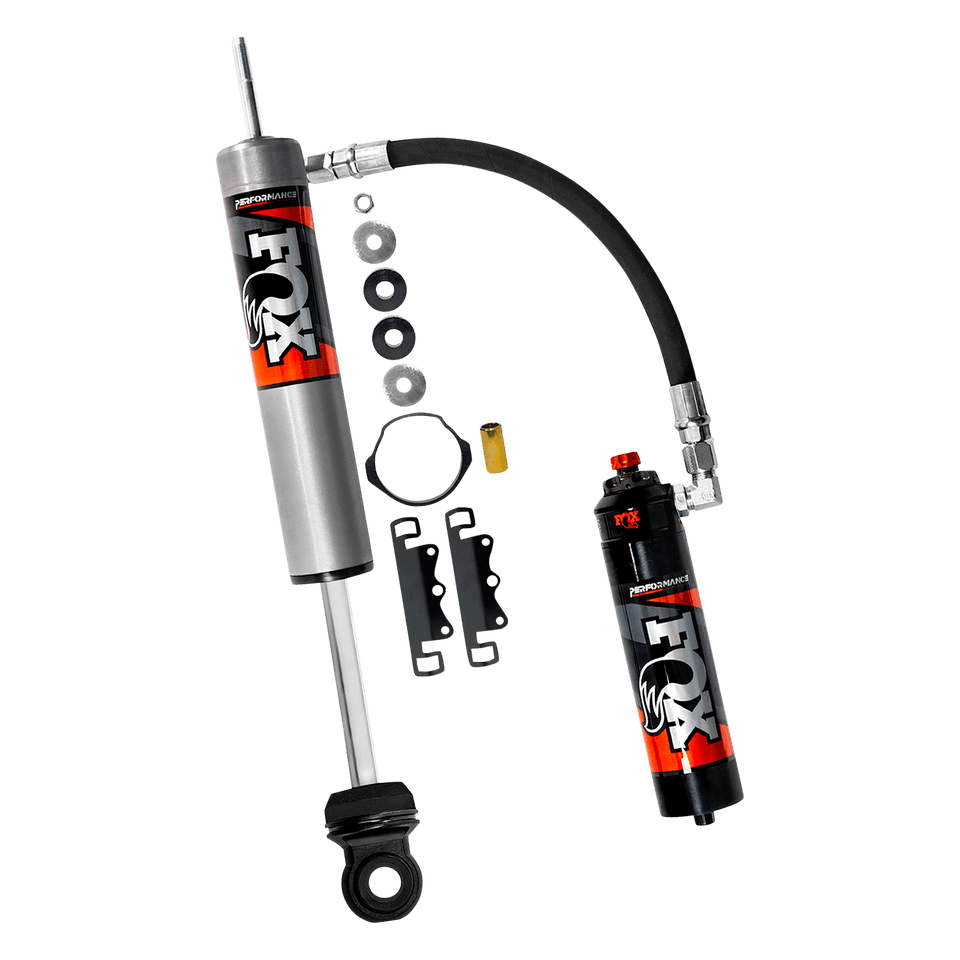

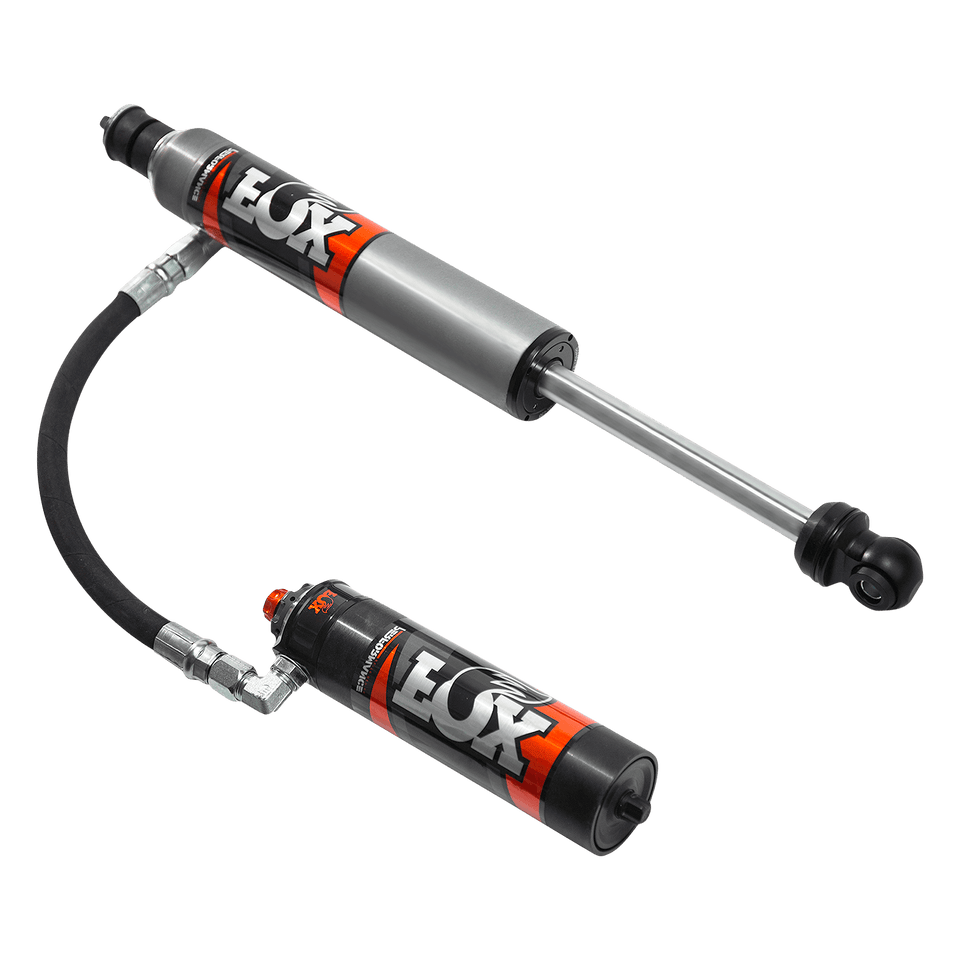

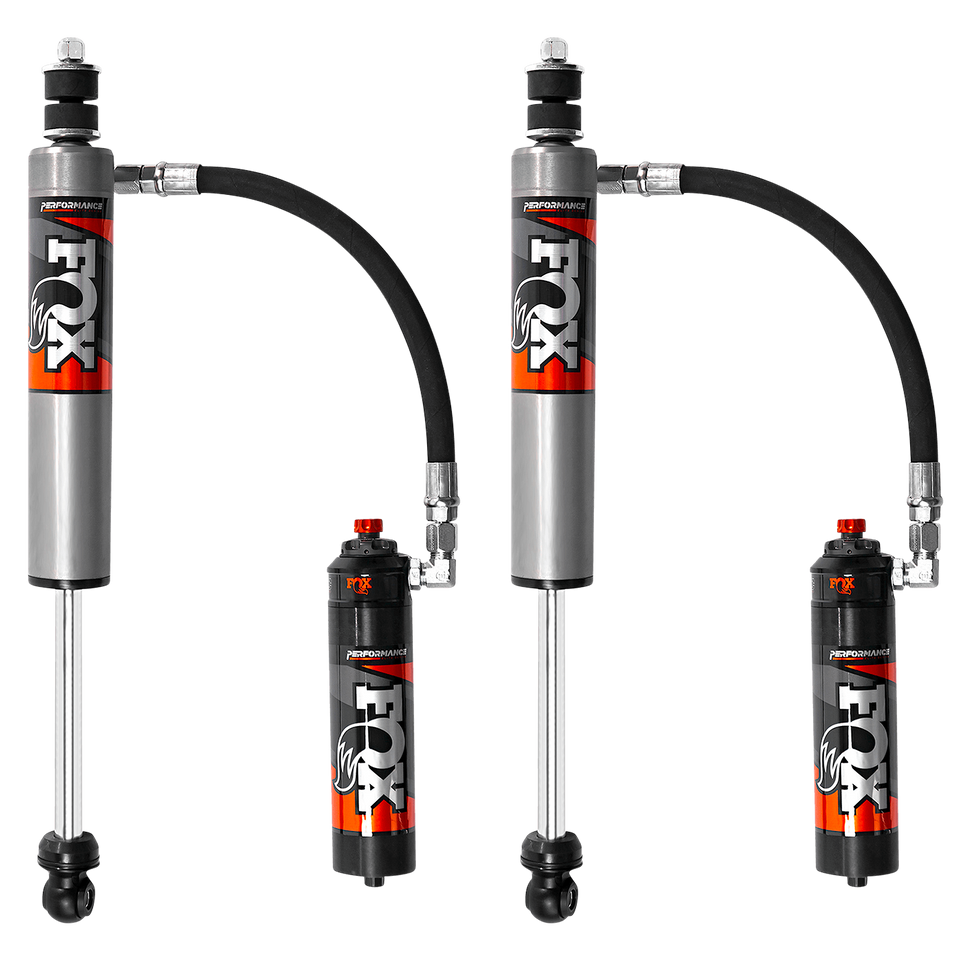

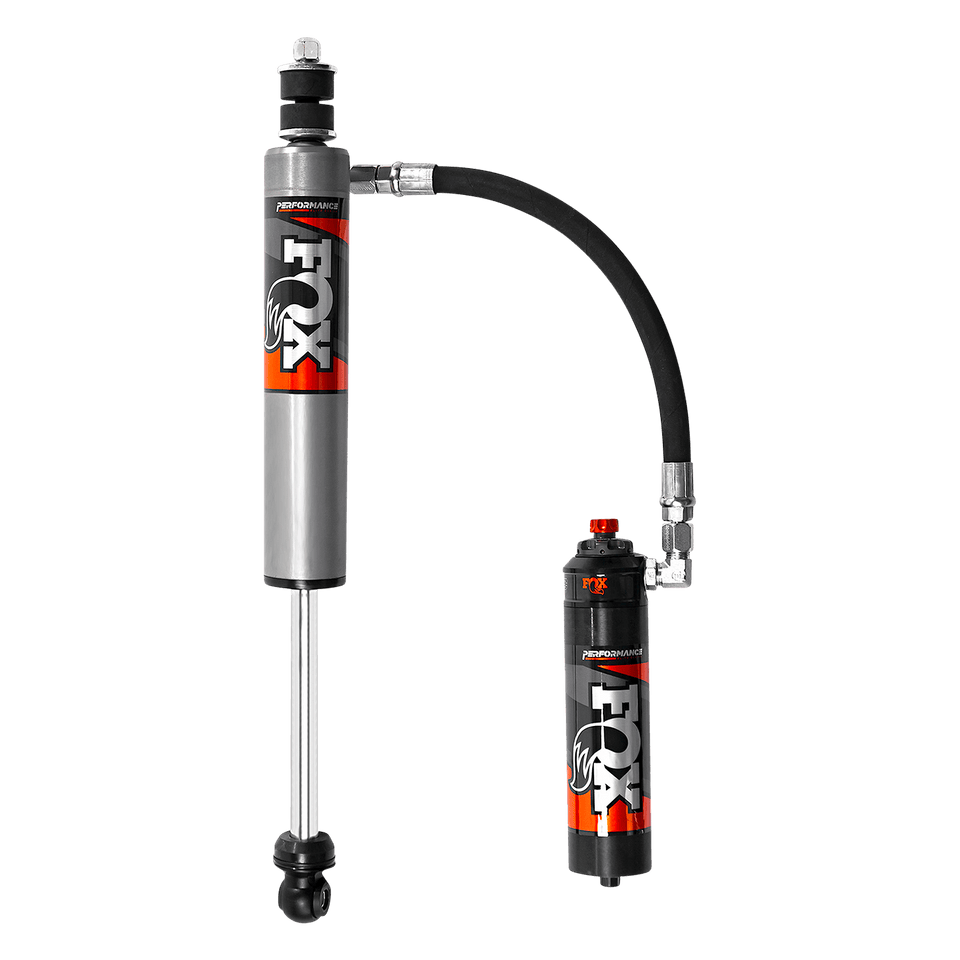

PERFORMANCE ELITE SERIES 2.5 RESERVOIR SHOCK (PAIR) - ADJUSTABLE
Performance Elite shocks improve the stock 4Runner platform by eliminating the vehicle’s forward rake, providing a level ride height without hindering droop travel while also increasing the suspension articulation of your SUV.
Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies, and external reservoirs efficiently dissipate heat by increasing internal oil capacity. Cooler shocks work better, longer. The reservoirs feature Dual Speed Compression (DSC) adjusters; strategically mounted to eliminate interference with aggressive tires at full lock.
Quickly adapt your shocks for load, environment, and driving style using the DSC adjusters as the high-flow piston manage stability through all types of terrain. FOX shocks are designed and engineered to support the damping of your rig and its variety of aftermarket accessories with the presumption you’re traveling deep off the grid. Realize the potential of your 4Runner on the next adventure.
FOX Performance Elite Series 2.5 shocks provide the versatility required to float over rough terrain without feeling disconnected and improve on-road manners while you remain comfortable and in control.
PART NUMBER | 883-26-115 |
FEATURES |
2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body Application-specific springs 7/8" hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster |
SERIES | Performance Elite |
TRAVEL | 8.48 |
BODY | 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
BODY PLATING | Hard-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 7/8" hard chrome plated heat-treated alloy steel |
PISTON | Race-developed high-flow piston design |
VALVING | Application specific valving to maximize performance |
SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
EXTENDED LENGTH | 22.98 |
COMPRESSED LENGTH | 14.5 |
TOP MOUNT | Stem Top |

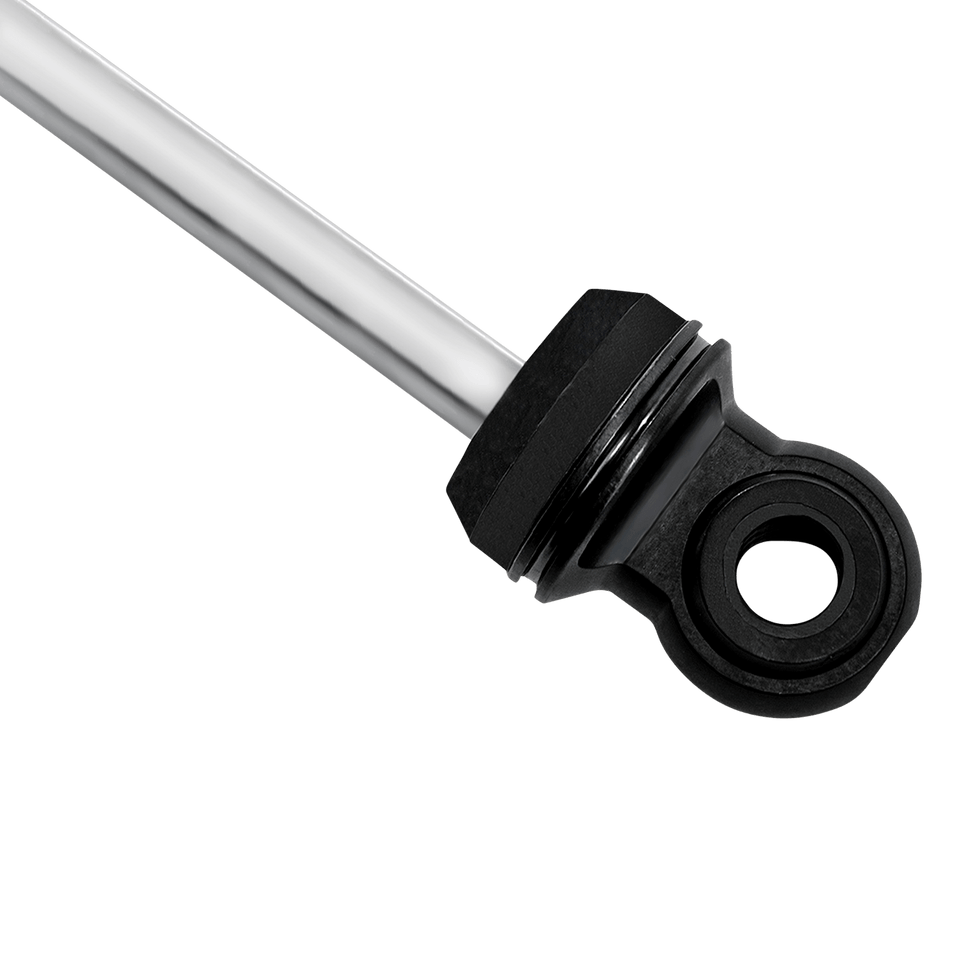

BOTTOM MOUNT | Eyelet |
PART NUMBER | 883-26-115 |
FEATURES |
2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body Application-specific springs 7/8" hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster |
SERIES | Performance Elite |
TRAVEL | 8.48 |
BODY | 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
BODY PLATING | Hard-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 7/8" hard chrome plated heat-treated alloy steel |
PISTON | Race-developed high-flow piston design |
VALVING | Application specific valving to maximize performance |
SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
EXTENDED LENGTH | 22.98 |
COMPRESSED LENGTH | 14.5 |
TOP MOUNT | Stem Top |
BOTTOM MOUNT | Eyelet |
883-26-115 Also Fits
Year | Make | Model | Drive Type | Position | Lift Height | Price |
---|---|---|---|---|---|---|
2003 | Toyota | 4Runner | All | Rear | 0-1.5 | $1,699.95 |
2004 | Toyota | 4Runner | All | Rear | 0-1.5 | $1,699.95 |
2005 | Toyota | 4Runner | All | Rear | 0-1.5 | $1,699.95 |
2006 | Toyota | 4Runner | All | Rear | 0-1.5 | $1,699.95 |
