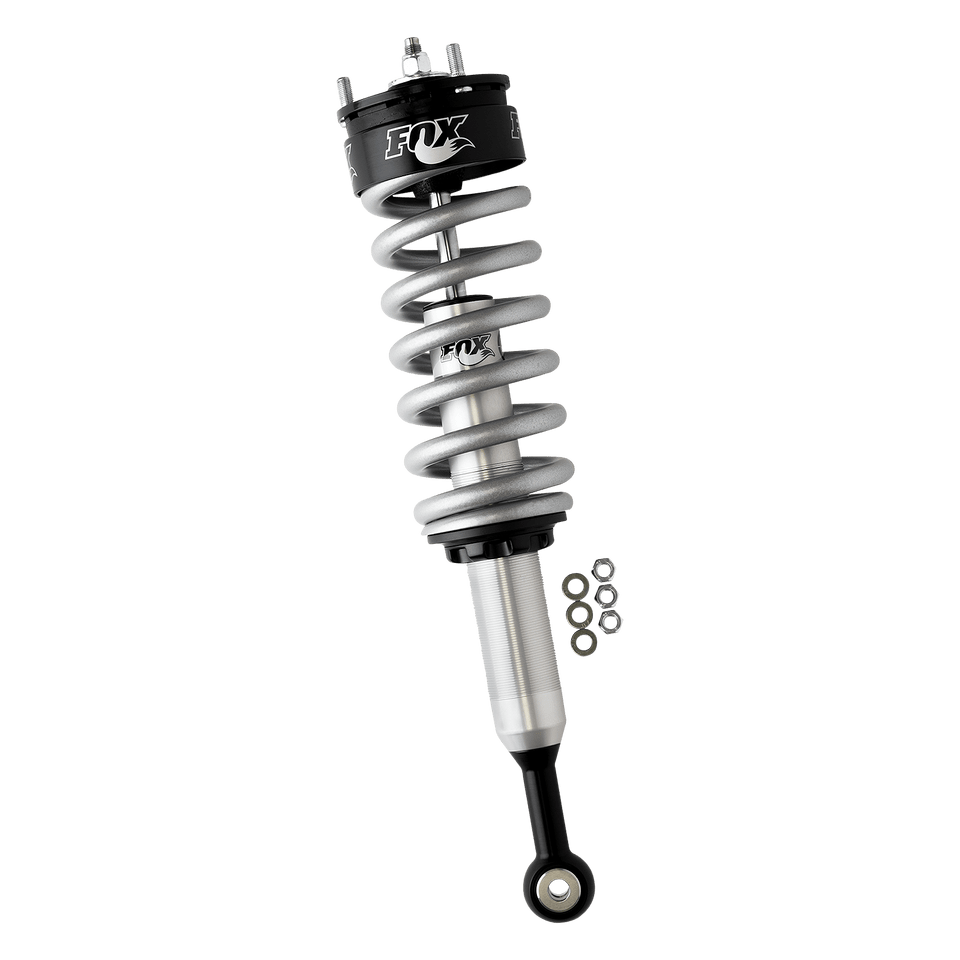

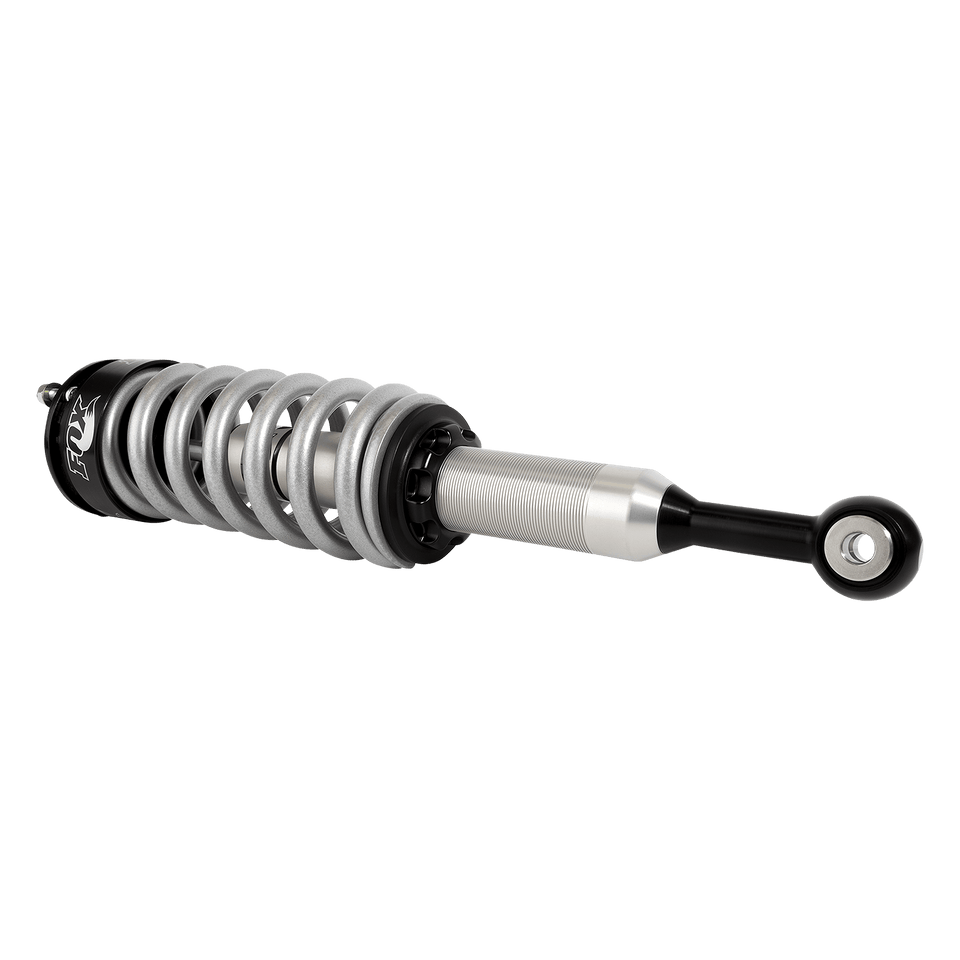

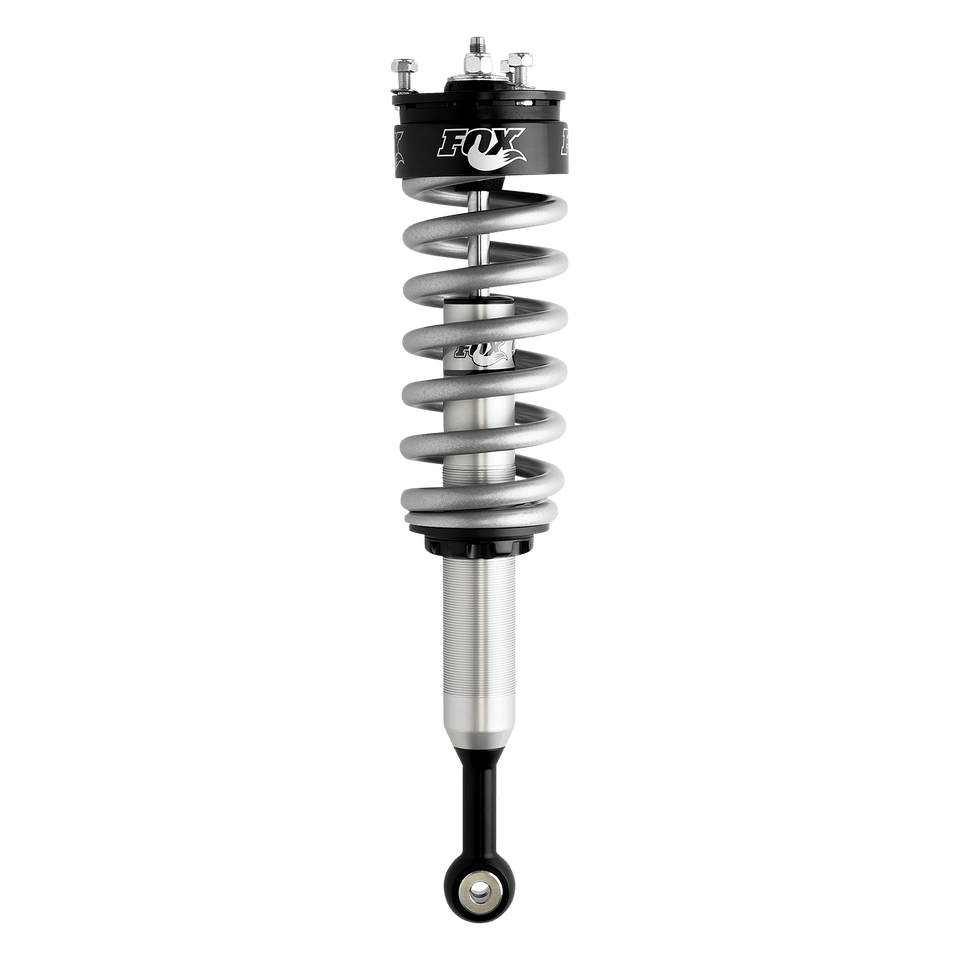

PERFORMANCE SERIES 2.0 COIL-OVER IFP SHOCK

$599.95

PERFORMANCE SERIES 2.0 COIL-OVER IFP SHOCK

Low Stock

Find a Retailer

View Cart Check Out

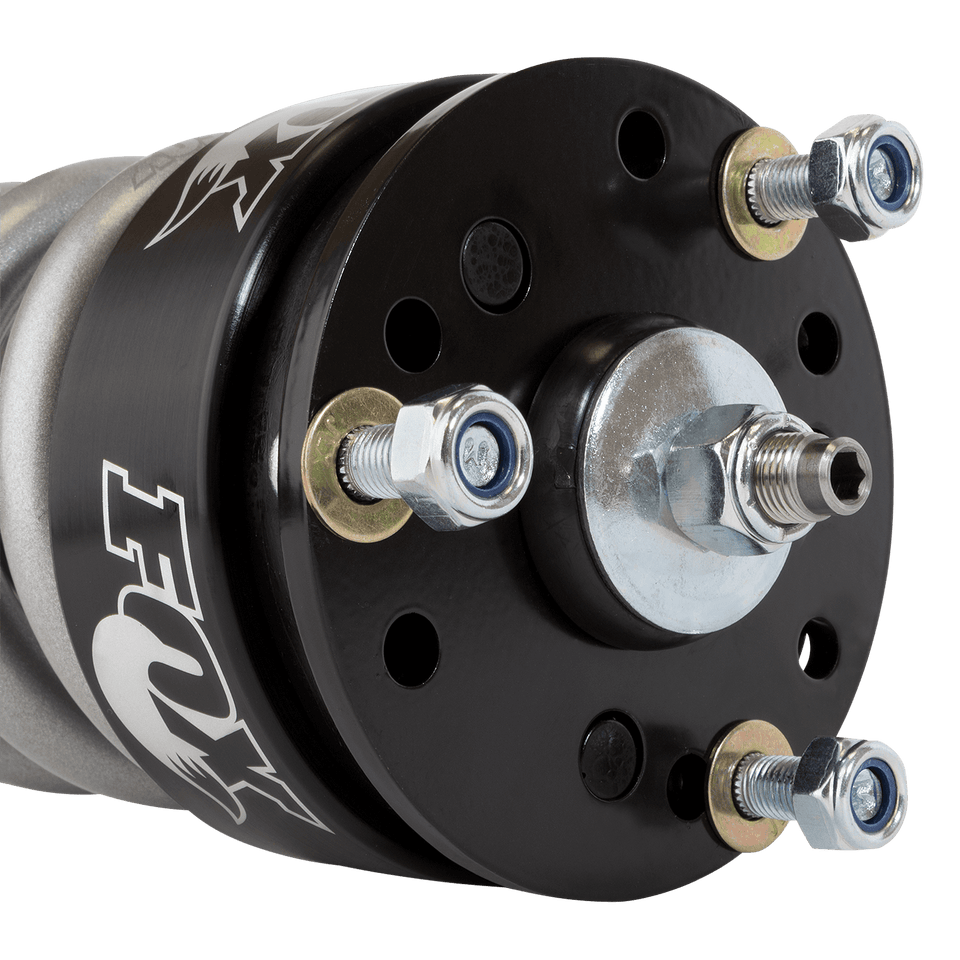

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

PART NUMBER 983-02-087
SERIES Performance
TRAVEL 4.59
BODY 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
BODY PLATING Clear-anodized for a durable finish
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 5/8" hard chrome plated heat-treated alloy steel
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS Large diameter, heavy-duty spherical
EXTENDED LENGTH 21.19
COMPRESSED LENGTH 16.6
TOP MOUNT TM

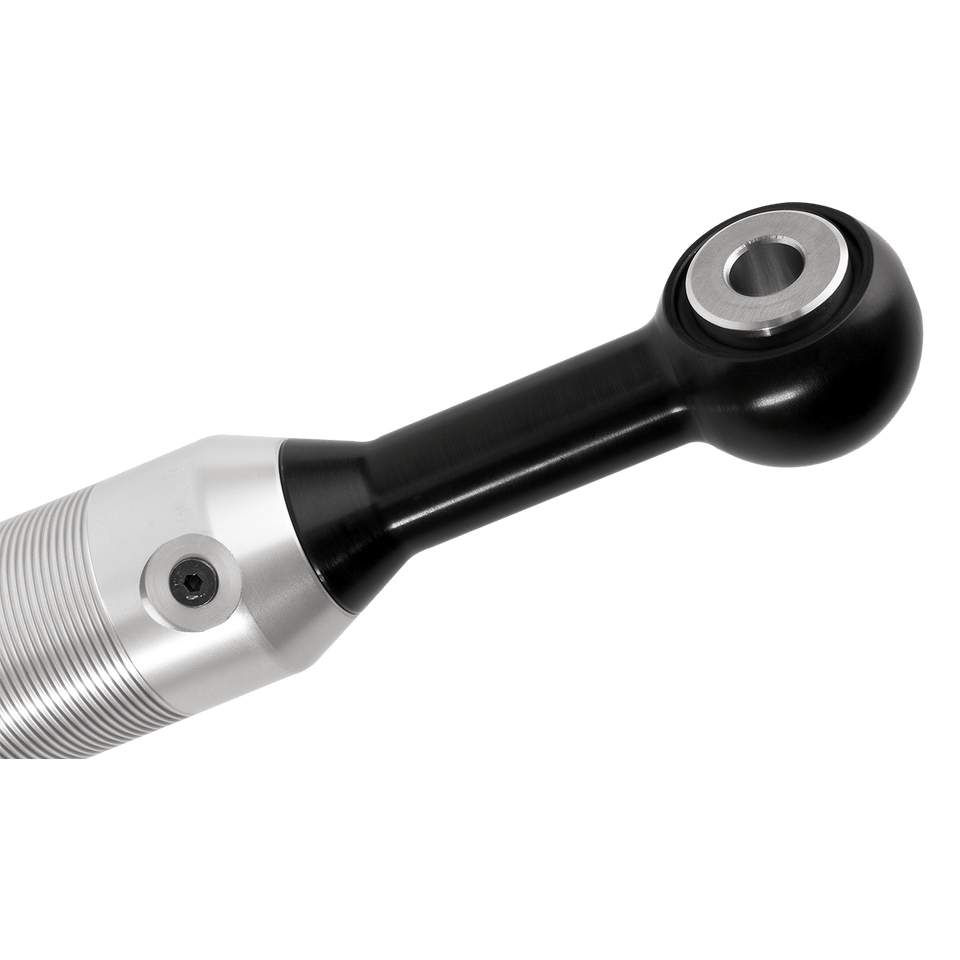

BOTTOM MOUNT Eyelet
FITMENT NOTES Front Lift: 0-2 inches

983-02-087 Also Fits

Year Make Model Drive Type Position Lift Height Price
2005 Toyota Fortuner 4WD Front 0-2 $599.95
2006 Toyota Fortuner 4WD Front 0-2 $599.95
2007 Toyota Fortuner 4WD Front 0-2 $599.95
2008 Toyota Fortuner 4WD Front 0-2 $599.95
2009 Toyota Fortuner 4WD Front 0-2 $599.95
2010 Toyota Fortuner 4WD Front 0-2 $599.95
2011 Toyota Fortuner 4WD Front 0-2 $599.95
2012 Toyota Fortuner 4WD Front 0-2 $599.95
2013 Toyota Fortuner 4WD Front 0-2 $599.95
2014 Toyota Fortuner 4WD Front 0-2 $599.95
2005 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2006 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2007 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2008 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2009 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2010 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2011 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2012 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2013 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2014 Toyota Fortuner TRD Sportivo RWD Front 0-2 $599.95
2005 Toyota Hilux 4WD Front 0-2 $599.95
2006 Toyota Hilux 4WD Front 0-2 $599.95
2007 Toyota Hilux 4WD Front 0-2 $599.95
2008 Toyota Hilux 4WD Front 0-2 $599.95
2009 Toyota Hilux 4WD Front 0-2 $599.95
2010 Toyota Hilux 4WD Front 0-2 $599.95
2011 Toyota Hilux 4WD Front 0-2 $599.95
2012 Toyota Hilux 4WD Front 0-2 $599.95
2013 Toyota Hilux 4WD Front 0-2 $599.95
2014 Toyota Hilux 4WD Front 0-2 $599.95
2015 Toyota Hilux 4WD Front 0-2 $599.95
2016 Toyota Hilux 4WD Front 0-2 $599.95
2005 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2006 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2007 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2008 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2009 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2010 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2011 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2012 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2013 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2014 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2015 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95
2016 Toyota Hilux Pre Runner - TRD RWD Front 0-2 $599.95

TUNING & MANUALS

  • 01

    OWNER'S MANUAL

    Full overview manual including tuning, installation, and general owner's manual.

    Download Manual
  • 02

    Warranty

    Full warranty information for all FOX suspension products.

    View Warranty
  • 03

    Service

    Keep your suspension performing at factory levels. Get service or upgrade your suspension.

    Get Service
