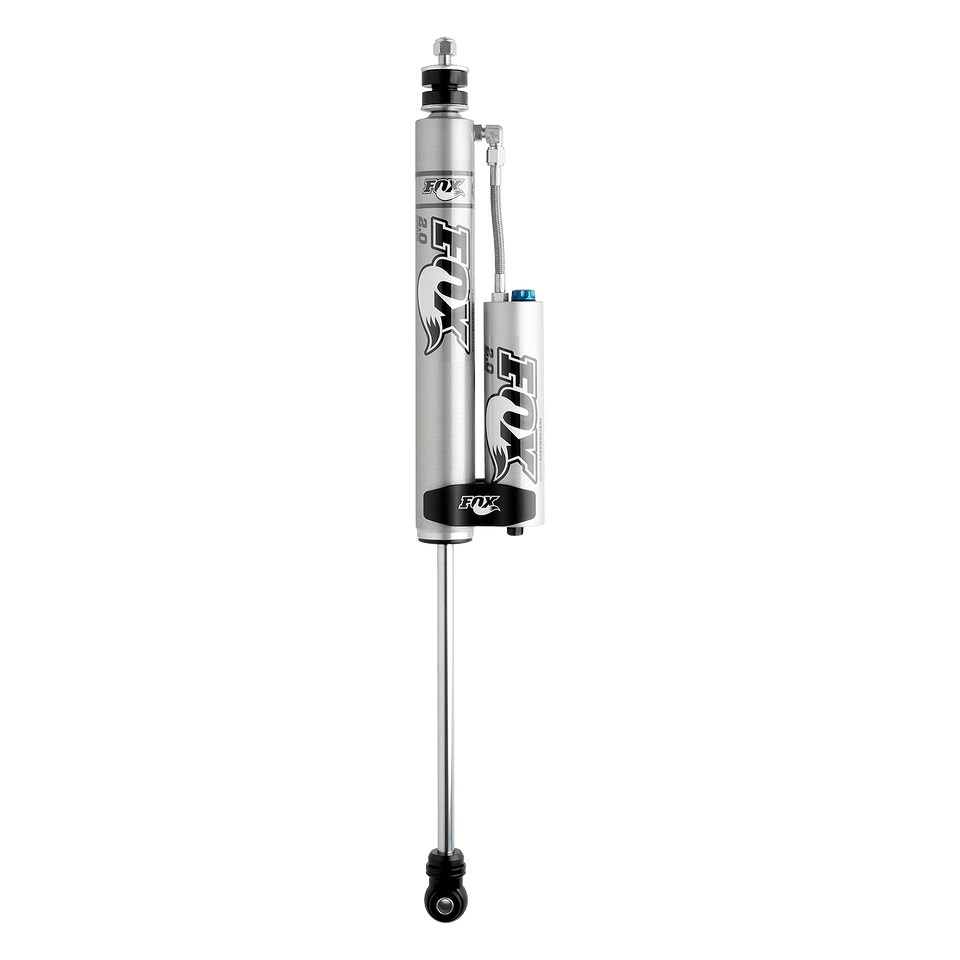

PERFORMANCE SERIES 2.0 SMOOTH BODY RESERVOIR SHOCK - ADJUSTABLE
The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
PART NUMBER | 985-26-099 |
SERIES | Performance |
TRAVEL | 9.62 |
BODY | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
BODY PLATING | Clear-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
PISTON | Race-developed high-flow piston design |
VALVING | Application specific valving to maximize performance |
SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
EXTENDED LENGTH | 24.37 |
COMPRESSED LENGTH | 14.75 |
TOP MOUNT | SM3 |
BOTTOM MOUNT | ES7 |
PART NUMBER | 985-26-099 |
SERIES | Performance |
TRAVEL | 9.62 |
BODY | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
BODY PLATING | Clear-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
PISTON | Race-developed high-flow piston design |
VALVING | Application specific valving to maximize performance |
SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
EXTENDED LENGTH | 24.37 |
COMPRESSED LENGTH | 14.75 |
TOP MOUNT | SM3 |
BOTTOM MOUNT | ES7 |
