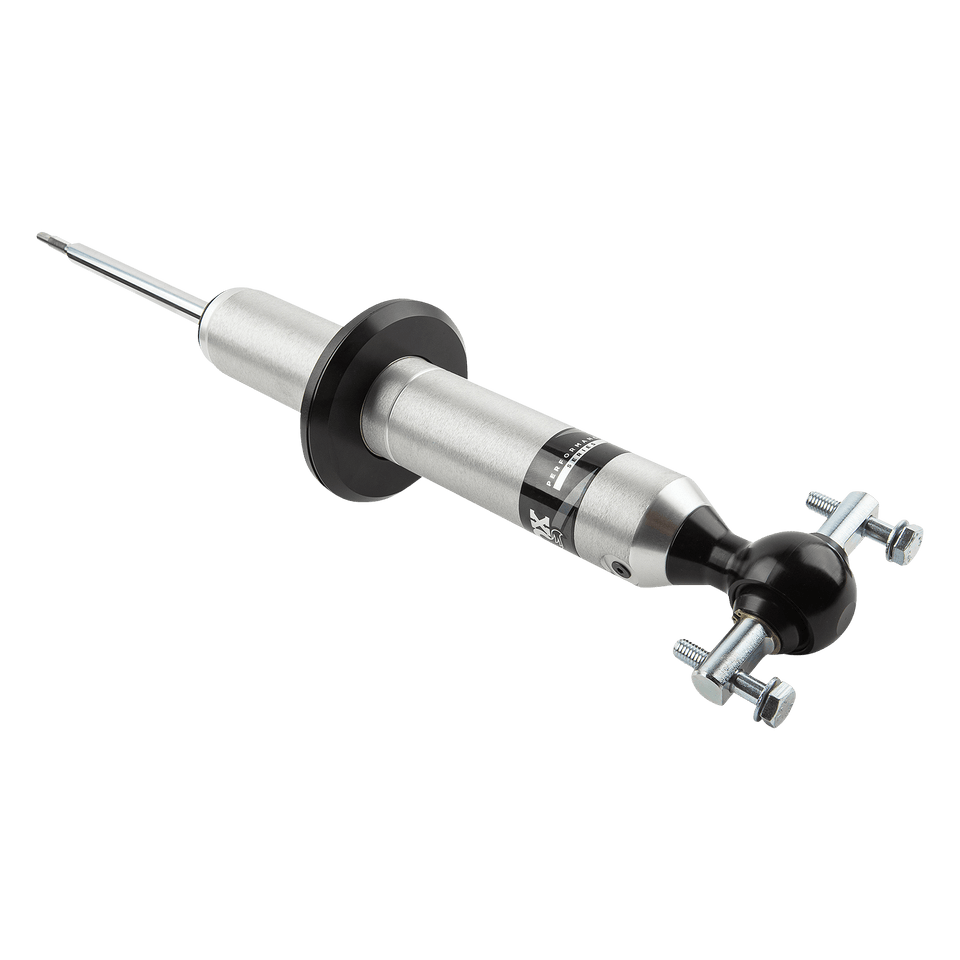

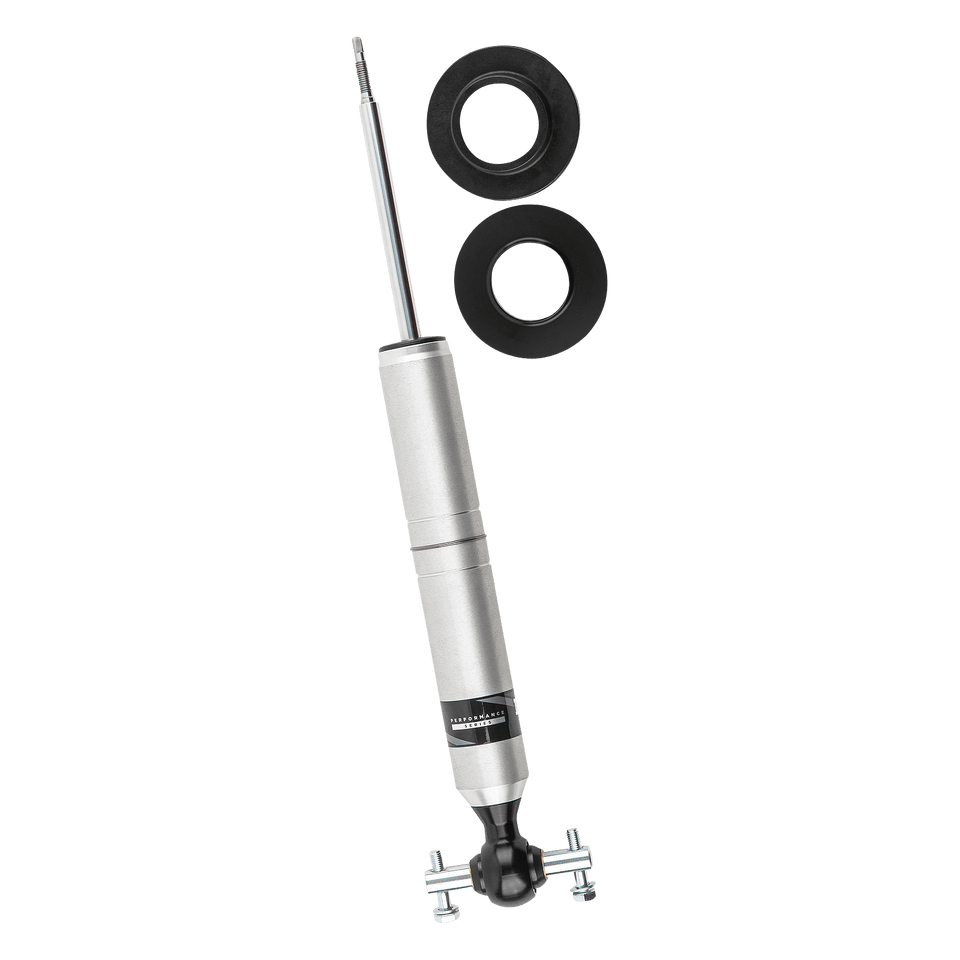

PERFORMANCE SERIES 2.0 SNAP RING COIL-OVER IFP SHOCK (SPRING NOT INCL)

$299.95

PERFORMANCE SERIES 2.0 SNAP RING COIL-OVER IFP SHOCK (SPRING NOT INCL)

Low Stock

Find a Retailer

View Cart Check Out

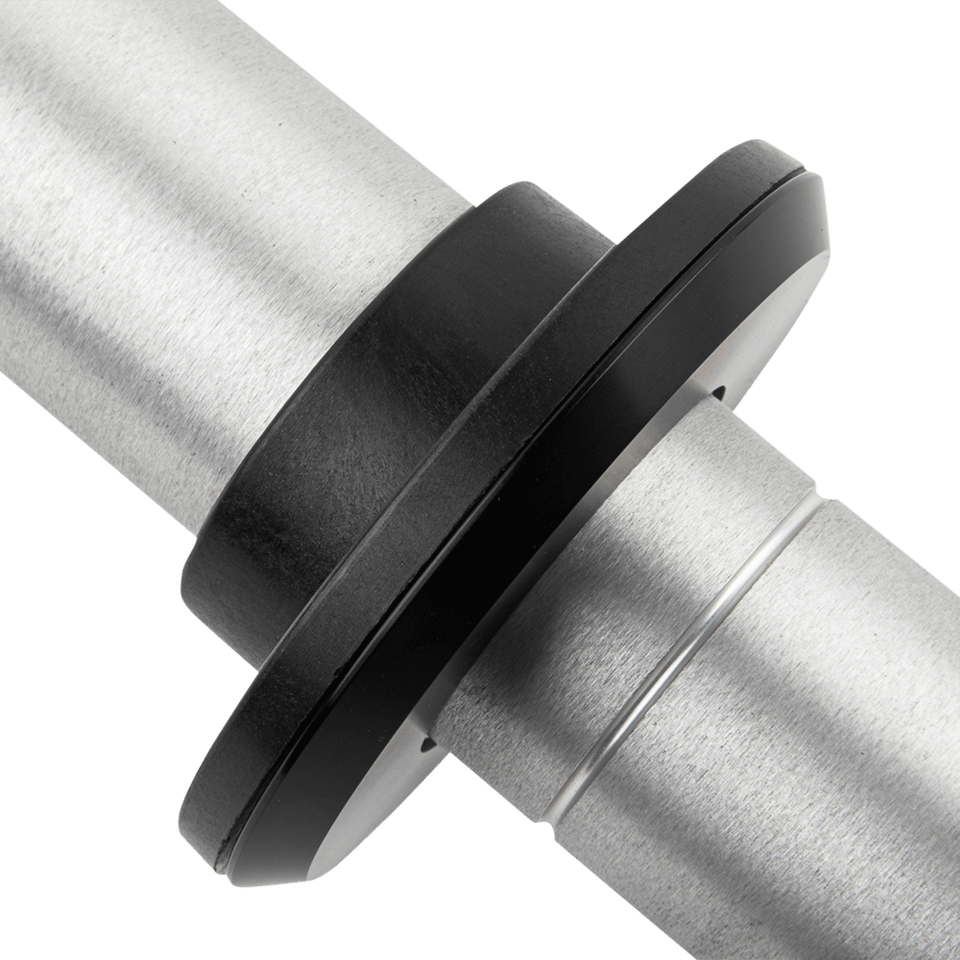

Our Performance Series 2.0 Coil-Over Snap Ring IFP shock is a bolt-on solution, loaded with a long list of features that set it apart. This includes a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance at an affordable price point. The precision, impact-extruded aluminum body is lightweight and rust resistant.

Inside the shock is an internal nitrogen-charged gas reservoir, contained by an internal floating piston (IFP) which separates the charged gas from the shock oil. The IFP eliminates oil from mixing with the nitrogen as is possible with the stock twin tube shocks,  allowing maximum performance from the factory-tuned precision valving. Three predetermined preload settings allow a choice of 0”, 1” or 2” of lift.

The easy-to-install Performance Series 2.0 Coil-Over Snap Ring IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

PART NUMBER 985-62-010
SERIES Performance
TRAVEL 4.79

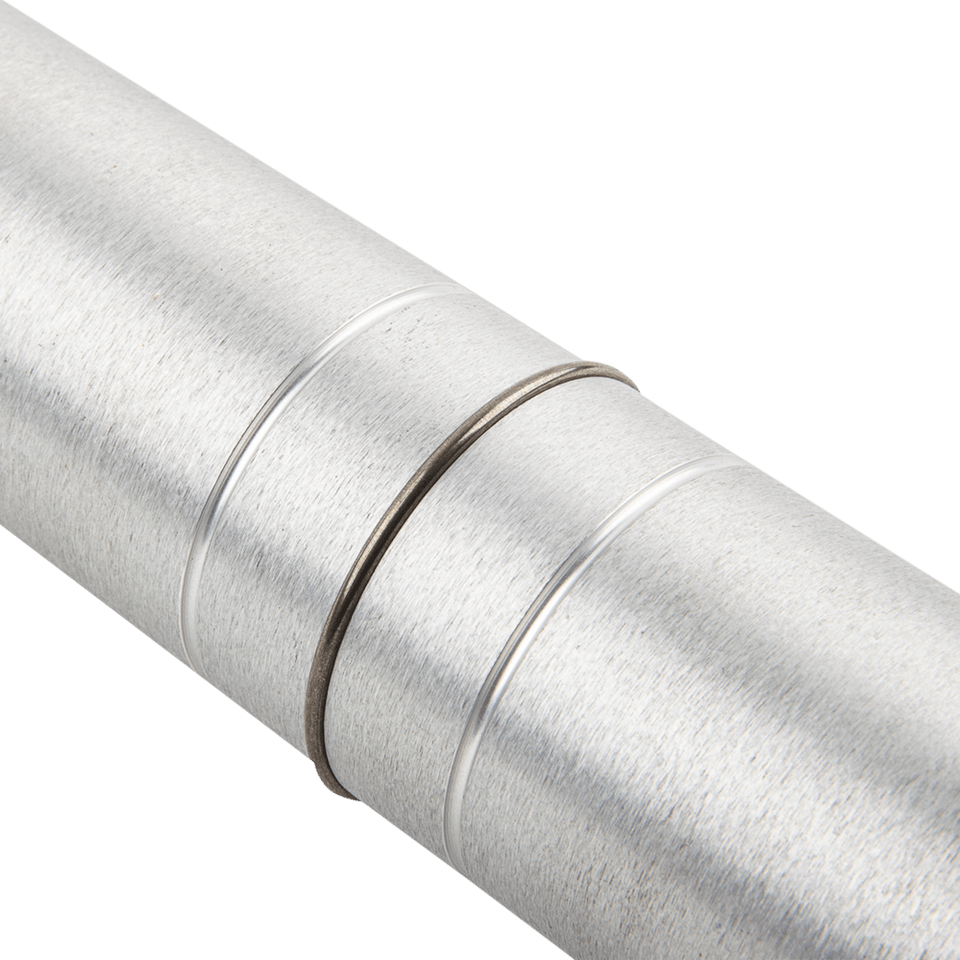

BODY 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
BODY PLATING Clear-anodized for a durable finish
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 5/8" hard chrome plated heat-treated alloy steel
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS Large diameter, heavy-duty spherical
EXTENDED LENGTH 22.09
COMPRESSED LENGTH 17.3
TOP MOUNT Reuses Stock Mounting Hardware

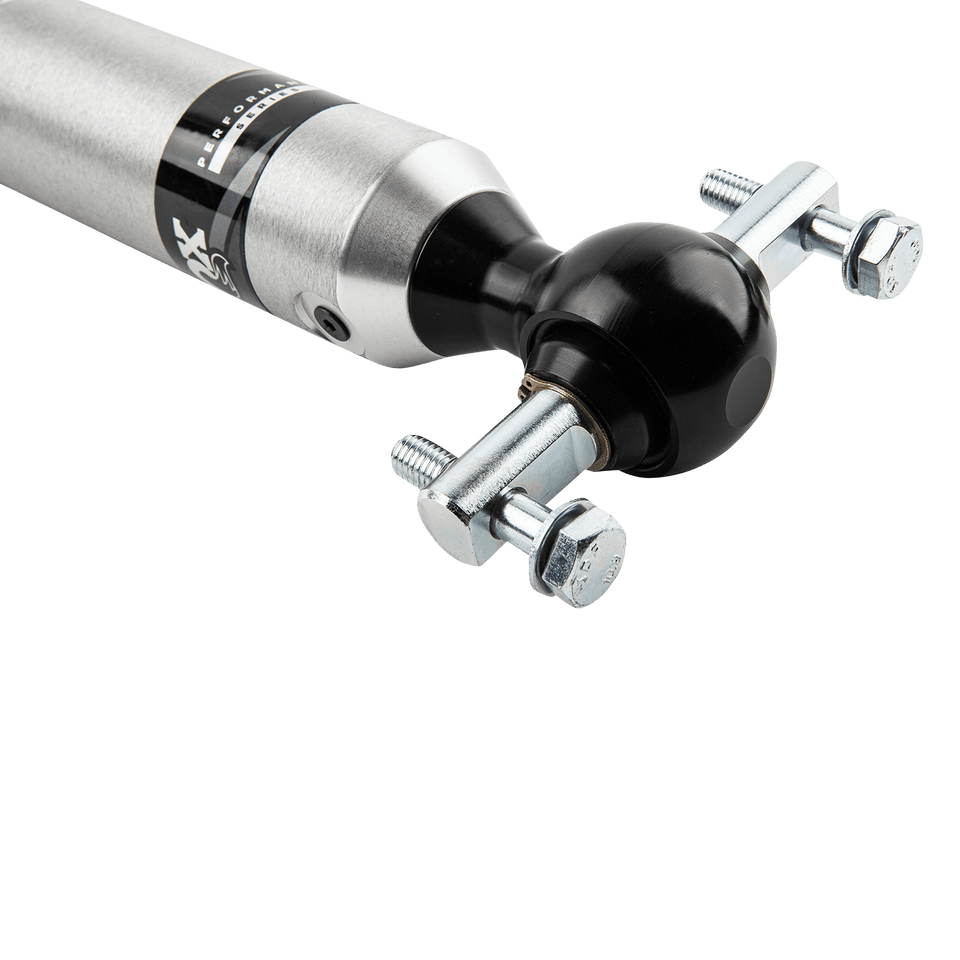

BOTTOM MOUNT Eyelet
FITMENT NOTES Spring not included | Reuses stock mounting hardware

985-62-010 Also Fits

Year Make Model Drive Type Position Lift Height Comments Price
2003 Toyota 4Runner All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
2004 Toyota 4Runner All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
2005 Toyota 4Runner All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
2006 Toyota 4Runner All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
2007 Toyota 4Runner All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
2008 Toyota 4Runner All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
2009 Toyota 4Runner All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
2007 Toyota FJ Cruiser All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
2008 Toyota FJ Cruiser All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
2009 Toyota FJ Cruiser All Front 0-2 Spring not included, Reuses stock mounting hardware $299.95
