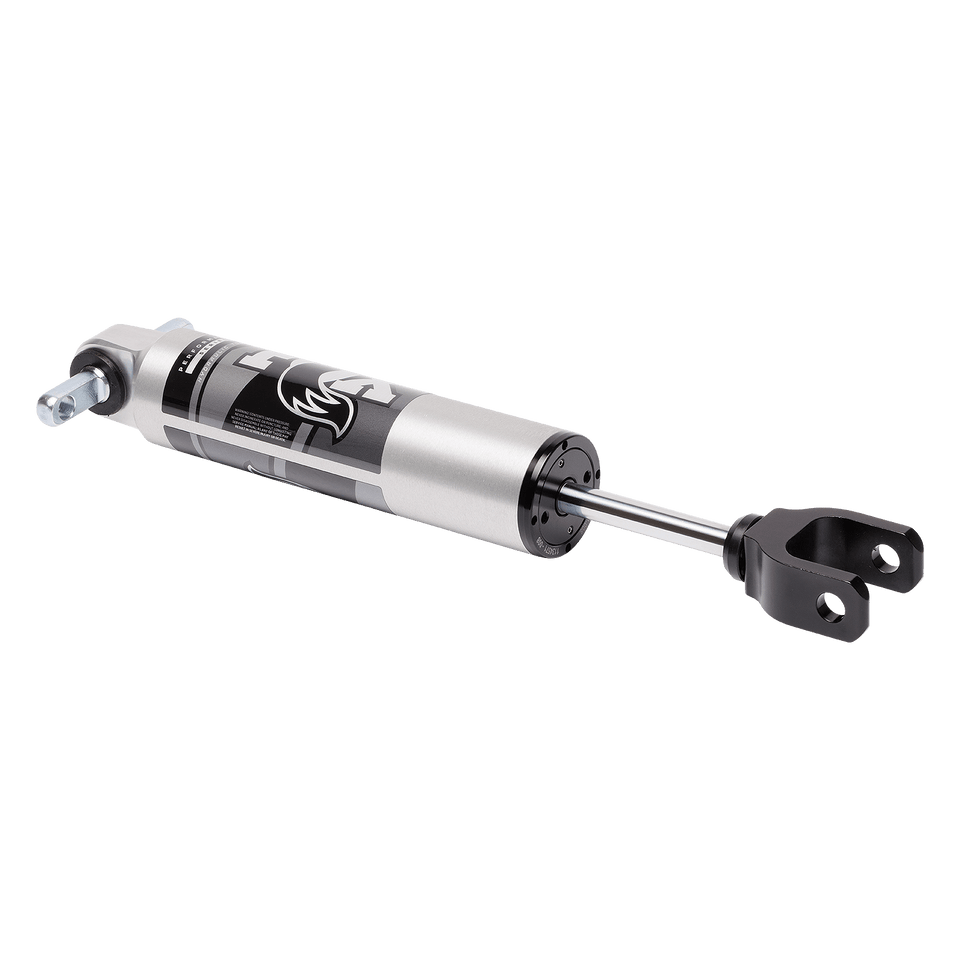

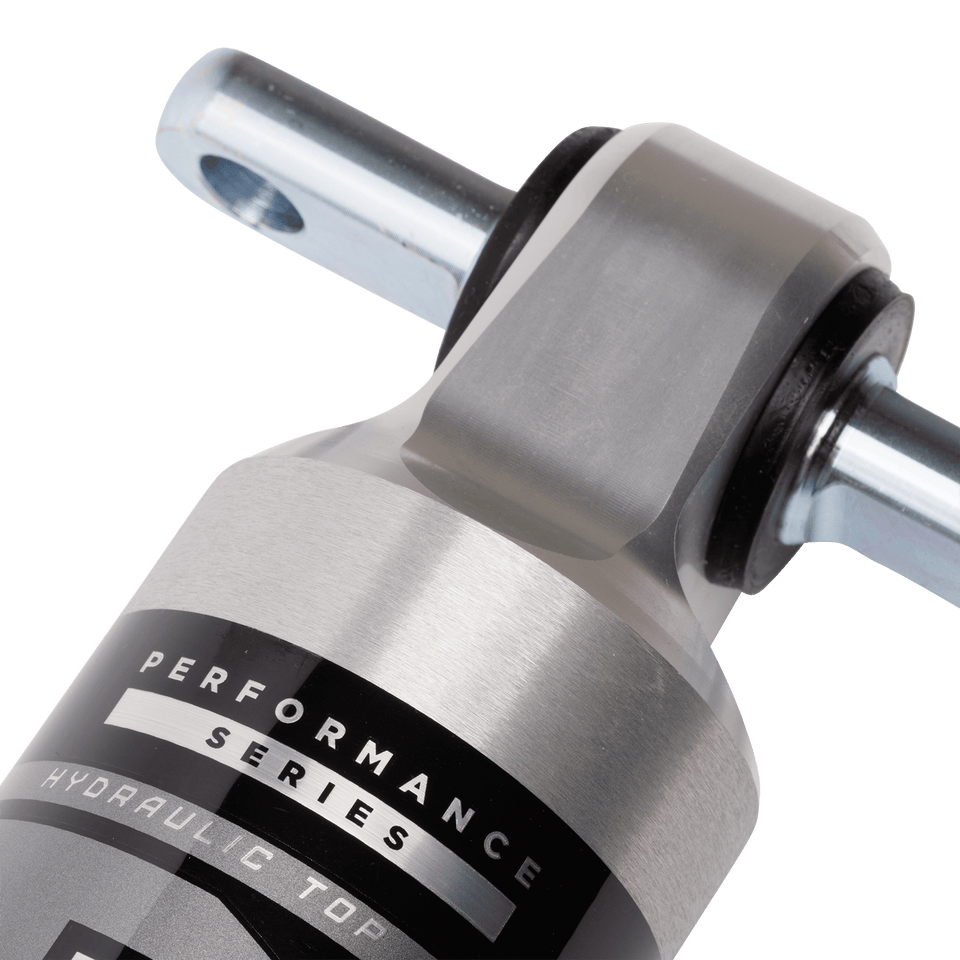

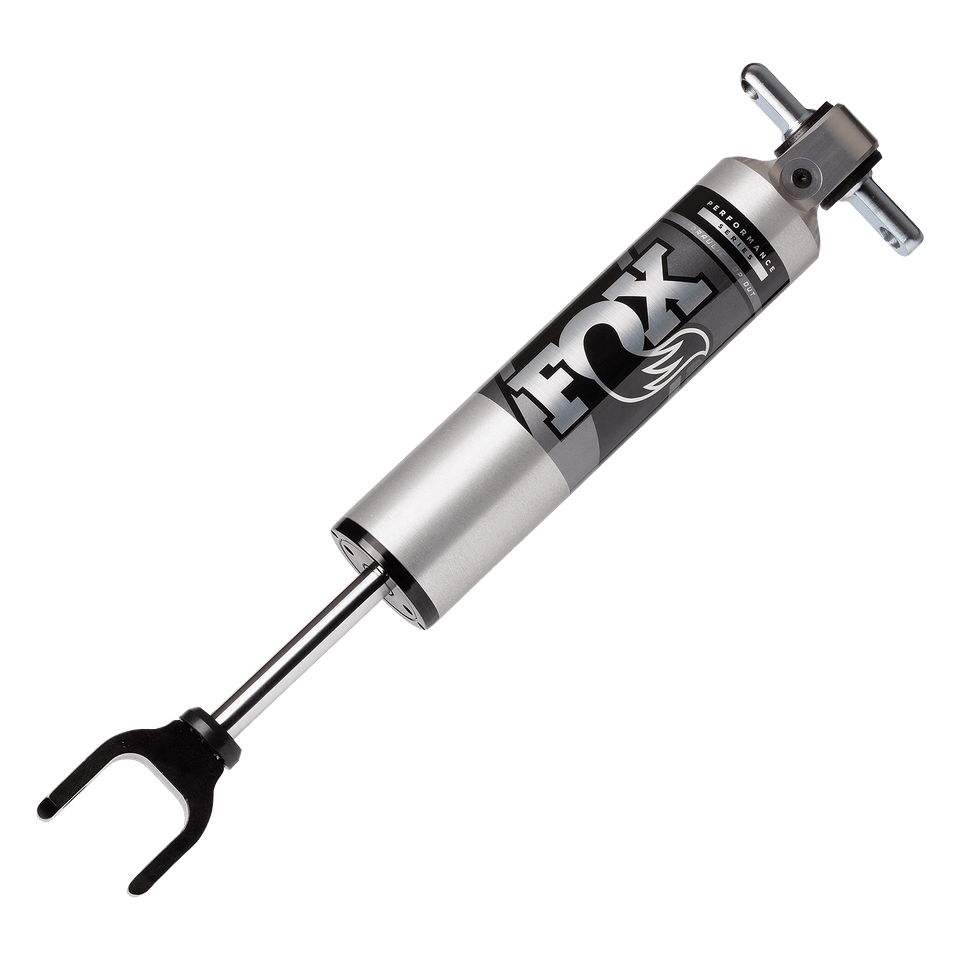

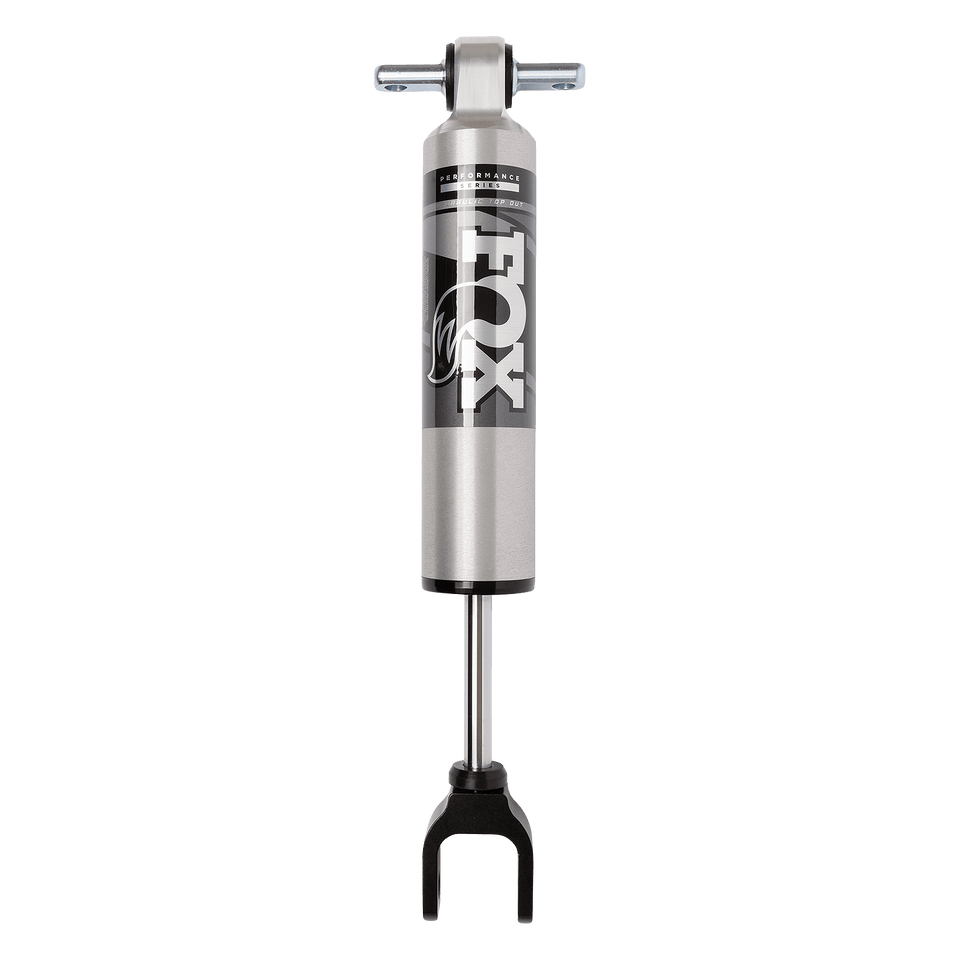

PERFORMANCE SERIES 2.5 SMOOTH BODY IFP HTO SHOCK
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
987-24-033 Also Fits
Year | Make | Model | Drive Type | Position | Lift Height | Comments | Price |
---|---|---|---|---|---|---|---|
2020 | Chevrolet | Silverado 2500 HD | All | Front | 4-6 | Not For Use With Lift Kits That Change OE Mounts | $329.95 |
2021 | Chevrolet | Silverado 2500 HD | All | Front | 4-6 | Not For Use With Lift Kits That Change OE Mounts | $329.95 |
2022 | Chevrolet | Silverado 2500 HD | All | Front | 4-6 | Not For Use With Lift Kits That Change OE Mounts | $329.95 |
2023 | Chevrolet | Silverado 2500 HD | All | Front | 4-6 | Not For Use With Lift Kits That Change OE Mounts | $329.95 |
PART NUMBER | 987-24-033 |
FEATURES |
2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston |
SERIES | Performance |
TRAVEL | 6.49 |
EXTENDED LENGTH | 21.25 |
COMPRESSED LENGTH | 14.77 |
TOP MOUNT | Bar Pin |
BOTTOM MOUNT | Clevis |
FITMENT NOTES | Lift: 4-6 inces Not For Use With Lift Kits That Change OE Mounts |
PART NUMBER | 987-24-033 |
FEATURES |
2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston |
SERIES | Performance |
TRAVEL | 6.49 |
EXTENDED LENGTH | 21.25 |
COMPRESSED LENGTH | 14.77 |
TOP MOUNT | Bar Pin |
BOTTOM MOUNT | Clevis |
FITMENT NOTES | Lift: 4-6 inces Not For Use With Lift Kits That Change OE Mounts |
