CHEVROLET CORVETTE | 2.0 FACTORY RACE SERIES
The C7 Corvette delivers speed from the factory, and a strong aftermarket catalog makes the chassis an ideal vehicle to configure into a dedicated track car or performance-oriented daily driver. FOX Factory Race Series 2.0 X2 shocks dramatically improve the car’s handling and driver confidence.

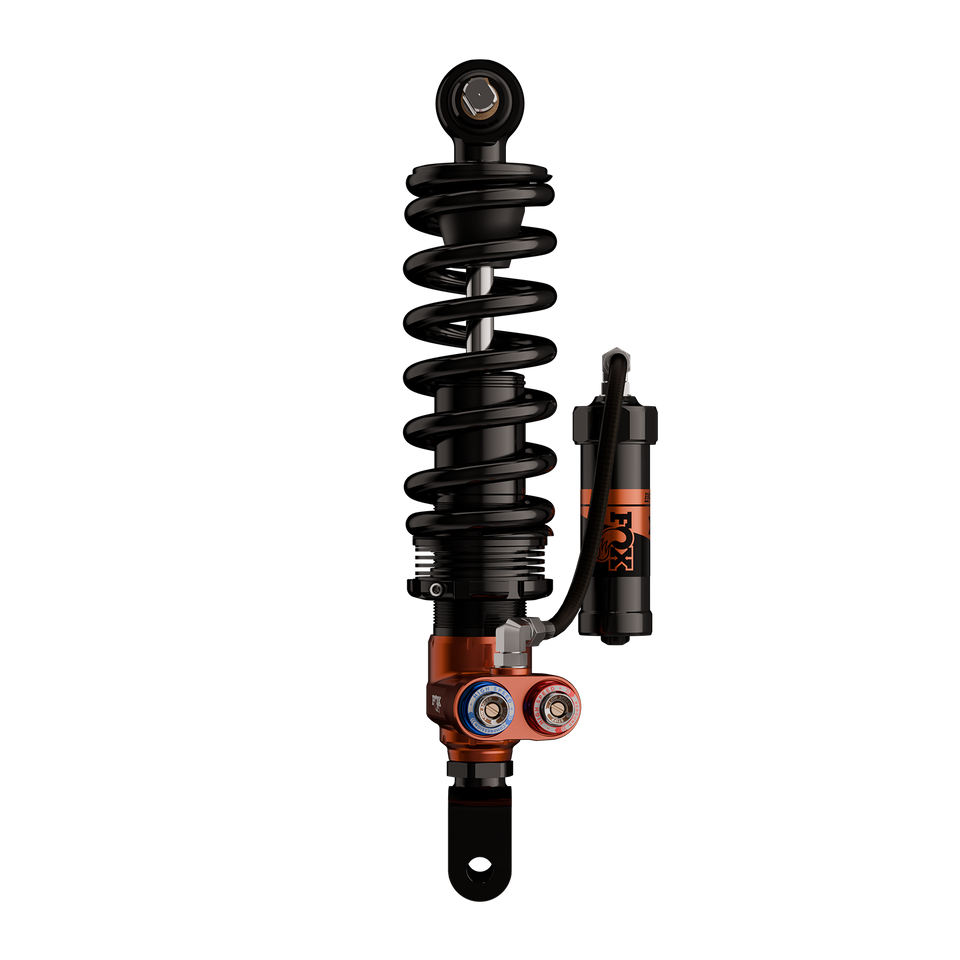

TYPE III hard anodization prevents corrosion and wear of the 2.0-inch aluminum bodies. Converting the front suspension to a coil-over makes spring changes, ride height adjustment, and corner balancing easier. The Factory Race Series kit accommodates 0.75-1.5” of lowering. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up.

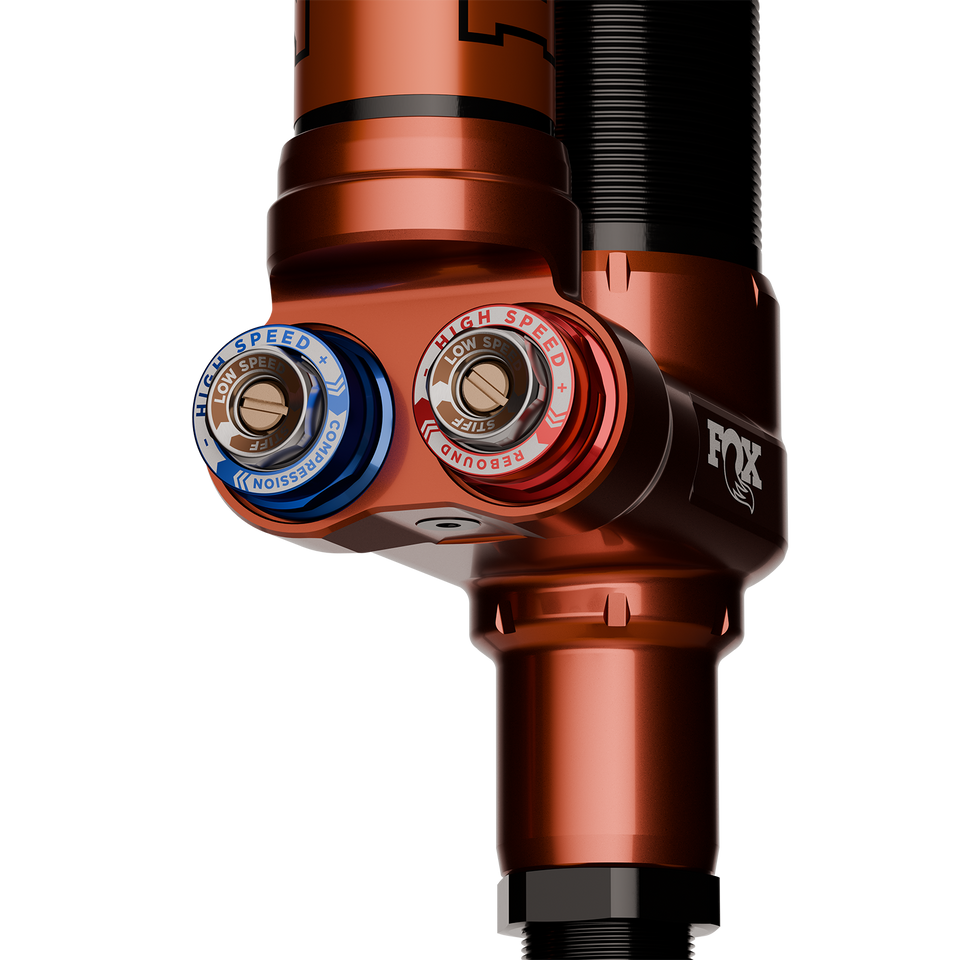

Our ride engineers spent considerable time testing the Corvette. We tracked the car, drove the C7 on the street, and optimized the shock valving for various driving conditions. Fine-tune the vehicle’s damping with the 4-way adjuster, X2. Easily tune high-speed compression, high-speed rebound, low-speed compression, and low-speed rebound separately with 24 clicks each. The shock’s twin tube recirculating oil architecture coupled with X2 provides motorsport-level damping on the track, and 4-way adjustment allows for a comfortable drive home.
The C7 Corvette is powerful and track-capable. With FOX, you can transform its ride dynamics to deliver more comfort over rough surfaces while feeling planted and stable through different track layouts and topography. dsad
883-30-004 Also Fits
| Year | Make | Model | Drive Type | Position | Comments | Price |
|---|---|---|---|---|---|---|

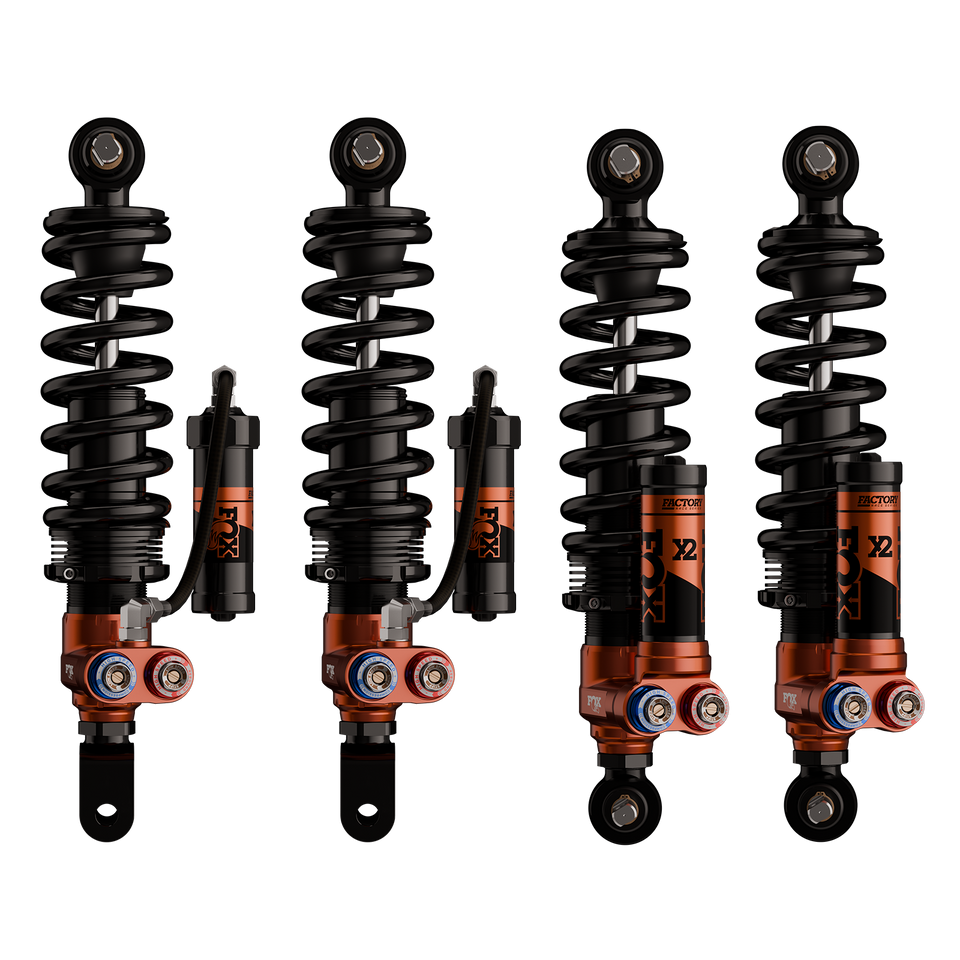

| 2014 | Chevrolet | Corvette | All | Front and Rear | Coil over conversion kit with ride height adjustability. Eliminates front and rear transverse leaf spring | $8,280.00 |
| 2015 | Chevrolet | Corvette | All | Front and Rear | Coil over conversion kit with ride height adjustability. Eliminates front and rear transverse leaf spring | $8,280.00 |
| 2016 | Chevrolet | Corvette | All | Front and Rear | Coil over conversion kit with ride height adjustability. Eliminates front and rear transverse leaf spring | $8,280.00 |
| 2017 | Chevrolet | Corvette | All | Front and Rear | Coil over conversion kit with ride height adjustability. Eliminates front and rear transverse leaf spring | $8,280.00 |
| PART NUMBER | 883-30-004 |
| FEATURES |

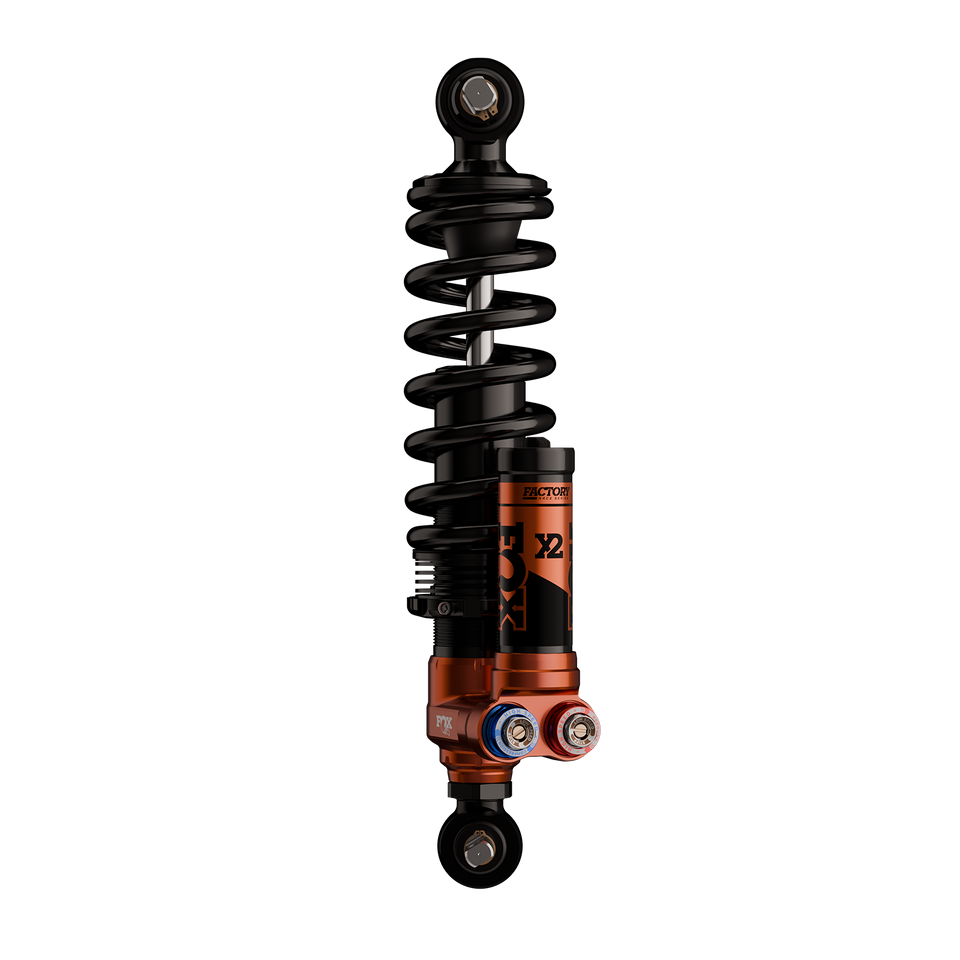

2.0” impact-extruded and CNC-machined 6061-T6 TYPE III anodized aluminum body 5/8” hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with internal floating piston |
| SERIES | Factory Race |
| FITMENT NOTES | Vehicle ride height drop is between .75-1.5" |
| PART NUMBER | 883-30-004 |
| FEATURES |
2.0” impact-extruded and CNC-machined 6061-T6 TYPE III anodized aluminum body 5/8” hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with internal floating piston |
| SERIES | Factory Race |
| FITMENT NOTES | Vehicle ride height drop is between .75-1.5" |
