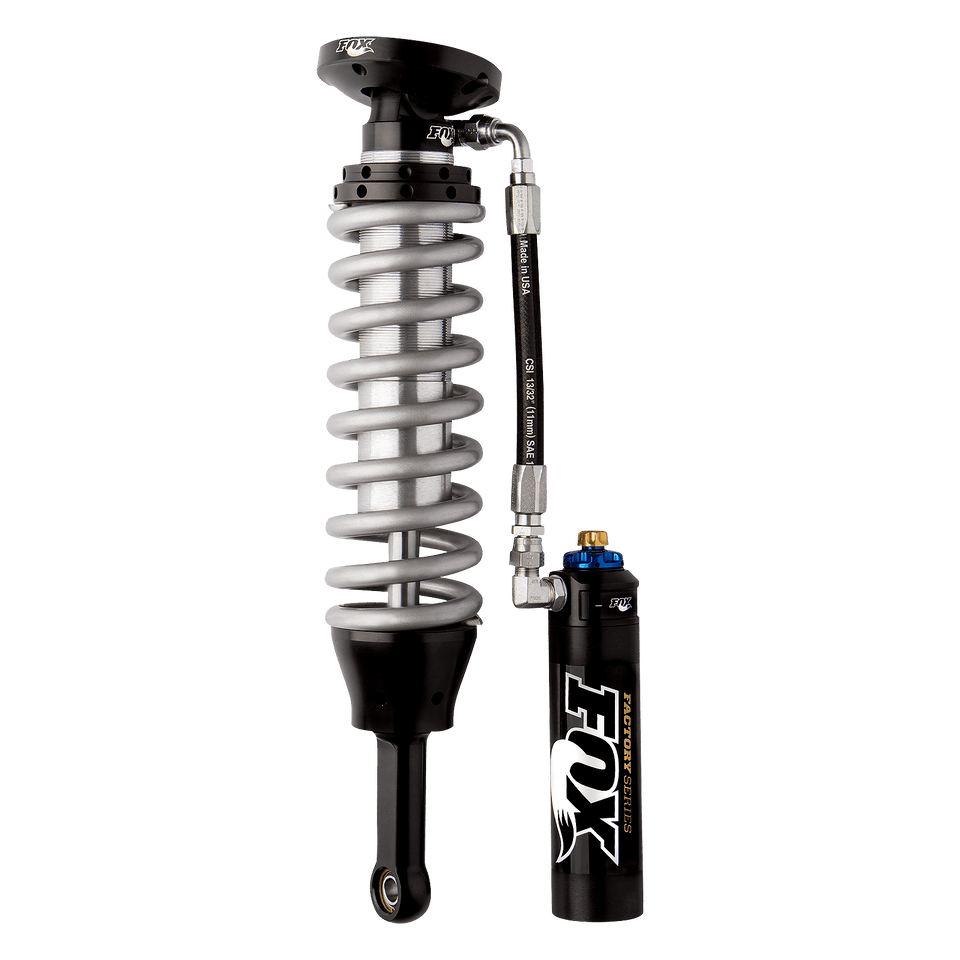

FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR) - ADJUSTABLE

$2,399.95

FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR) - ADJUSTABLE

Low Stock

Find a Retailer

View Cart Check Out

Before any of our shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel. Our bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain.

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

PART NUMBER 880-06-409
FEATURES Requires Upper Control Arm
Performance Tuned For Vehicle Specific Application
Durable Zinc Plated Seamless Alloy Body
External Reservoir System Dissipates Heat Fast
Black Anodized CNC Machined Aluminum Components
SERIES Factory Race
TRAVEL 5.3
BODY 2.5” smooth bore zinc plated seamless steel body
BODY PLATING Zinc-plated and double-clear coated for long lasting finish
RESERVOIR Zinc-plated and double-clear coated for long lasting finish
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 7/8" hard chrome plated steel shafts
PISTON 6061-T6 hard-anodized, high flow aluminum piston
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH 18.96
COMPRESSED LENGTH 13.66
TOP MOUNT TM
BOTTOM MOUNT Eyelet
FITMENT NOTES Fits 6 lug version only

880-06-409 Also Fits

Year Make Model Drive Type Position Lift Height Comments Price
1995 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
1996 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
1997 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
1998 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
1998 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only $2,399.95
1999 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
1999 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only $2,399.95
2000 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
2000 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only $2,399.95
2001 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
2001 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only $2,399.95
2002 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
2002 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only $2,399.95
2003 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
2003 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only $2,399.95
2004 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,399.95
2004 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only $2,399.95
