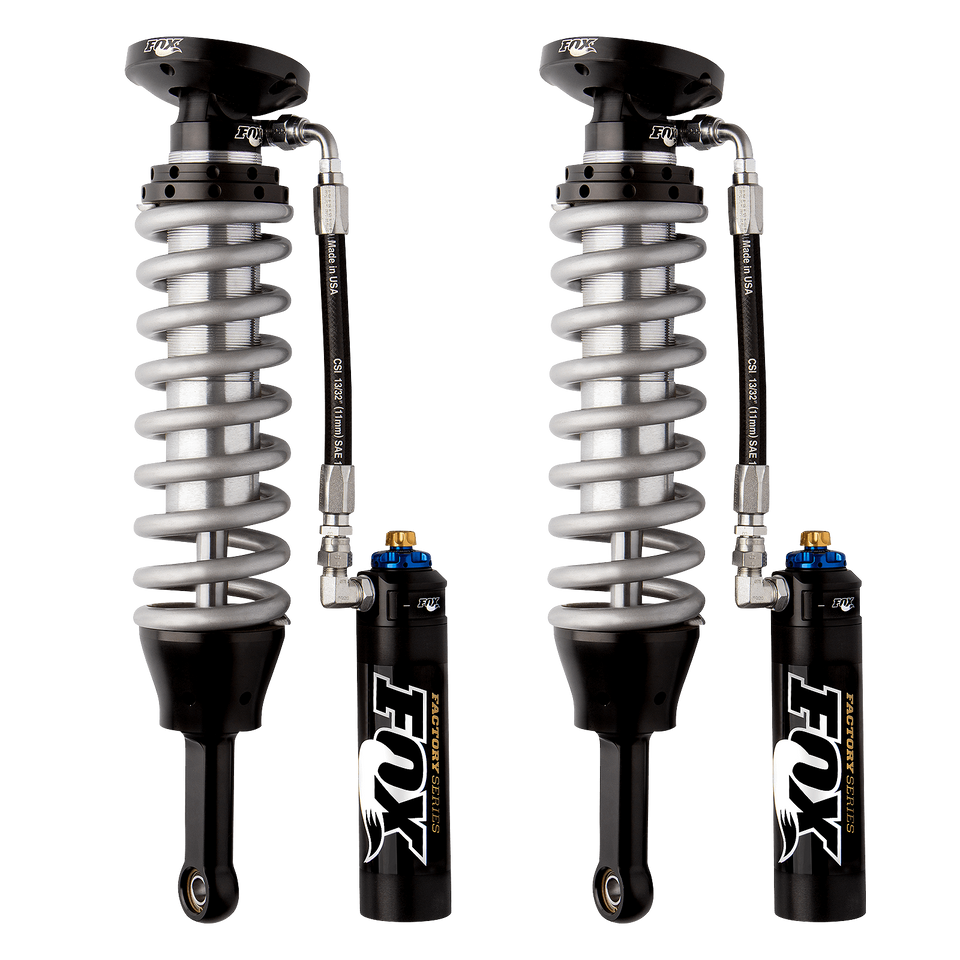

FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR) - ADJUSTABLE

$2,599.95

FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR) - ADJUSTABLE

Low Stock

Find a Retailer

View Cart Check Out

Before any of our shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel. Our bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain.

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

PART NUMBER 880-06-418
FEATURES Requires Upper Control Arm
Performance Tuned For Vehicle Specific Application
Durable Zinc Plated Seamless Alloy Body
External Reservoir System Dissipates Heat Fast
Black Anodized CNC Machined Aluminum Components
SERIES Factory Race
TRAVEL 4.9
BODY 2.5” smooth bore zinc plated seamless steel body
BODY PLATING Zinc-plated and double-clear coated for long lasting finish
RESERVOIR 2.5" Smooth bore and honed seamless alloy reservoir
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 7/8" hard chrome plated steel shafts
PISTON 6061-T6 hard-anodized, high flow aluminum piston
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH 21.81
COMPRESSED LENGTH 16.91
TOP MOUNT TM
BOTTOM MOUNT Eyelet
FITMENT NOTES Fits 6 lug version only | Requires Upper Control Arm

880-06-418 Also Fits

Year Make Model Drive Type Position Lift Height Comments Price
2005 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2005 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2006 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2006 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2007 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2007 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2008 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2008 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2009 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2009 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2010 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2010 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2011 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2011 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2012 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2012 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2013 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2013 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2014 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2014 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2015 Toyota Tacoma 4WD Front 0-3 Requires Upper Control Arm $2,599.95
2015 Toyota Tacoma RWD Front 0-3 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2016 Toyota Tacoma 4WD Front 0-2 Requires Upper Control Arm $2,599.95
2016 Toyota Tacoma RWD Front 0-2 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2017 Toyota Tacoma 4WD Front 0-2 Requires Upper Control Arm $2,599.95
2017 Toyota Tacoma RWD Front 0-2 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2018 Toyota Tacoma 4WD Front 0-2 Requires Upper Control Arm $2,599.95
2018 Toyota Tacoma RWD Front 0-2 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2019 Toyota Tacoma 4WD Front 0-2 Requires Upper Control Arm $2,599.95
2019 Toyota Tacoma RWD Front 0-2 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2020 Toyota Tacoma 4WD Front 0-2 Requires Upper Control Arm $2,599.95
2020 Toyota Tacoma RWD Front 0-2 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2021 Toyota Tacoma 4WD Front 0-2 Requires Upper Control Arm $2,599.95
2021 Toyota Tacoma RWD Front 0-2 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2022 Toyota Tacoma 4WD Front 0-2 Requires Upper Control Arm $2,599.95
2022 Toyota Tacoma RWD Front 0-2 Fits 6 lug version only , Requires Upper Control Arm $2,599.95
2023 Toyota Tacoma 4WD Front 0-2 Requires Upper Control Arm $2,599.95
2023 Toyota Tacoma RWD Front 0-2 Fits 6 lug version only , Requires Upper Control Arm $2,599.95

TUNING & MANUALS

  • 01

    OWNER'S MANUAL

    Full overview manual including tuning, installation, and general owner's manual.

    Download Manual
  • 02

    Warranty

    Full warranty information for all FOX suspension products.

    View Warranty
  • 03

    Service

    Keep your suspension performing at factory levels. Get service or upgrade your suspension.

    Get Service
