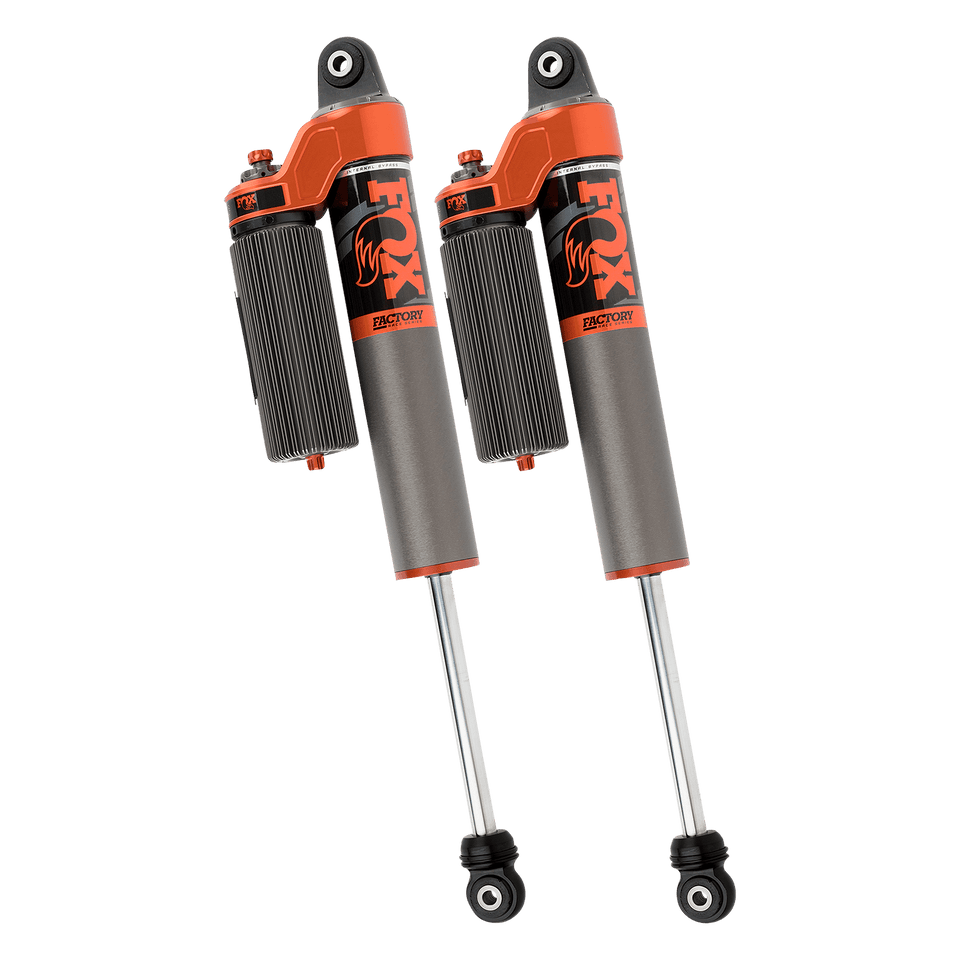

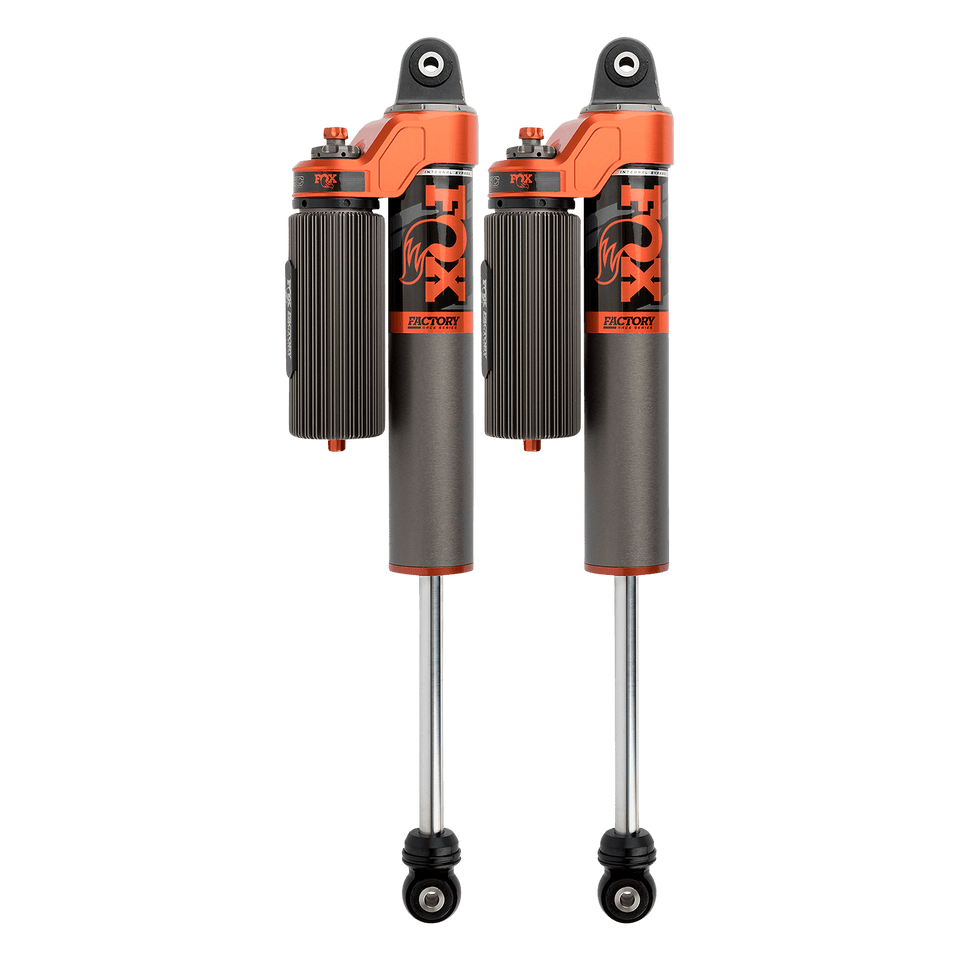

FACTORY RACE SERIES 3.0 INTERNAL BYPASS PIGGYBACK SHOCK (PAIR) - ADJUSTABLE

$2,995.95

FACTORY RACE SERIES 3.0 INTERNAL BYPASS PIGGYBACK SHOCK (PAIR) - ADJUSTABLE

Low Stock

Find a Retailer

The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail.

These hard-anodized, aluminum-bodied shocks are engineered with precision-machined aluminum components and race-bred internal valving. They are designed to bolt onto your 2-3\ aftermarket suspension lift kit using OEM shock pivots. Featuring a NEW heavy-duty piggyback bridge designed specifically for Wrangler JL featuring hard-anodized

PART NUMBER 883-26-058
FEATURES Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; Multiple Internal Damping Zones; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components
SERIES Factory Race
TRAVEL 9.71
EXTENDED LENGTH 28.64
COMPRESSED LENGTH 18.93
TOP MOUNT EB2
BOTTOM MOUNT EB2

883-26-058 Also Fits

Year Make Model Drive Type Position Lift Height Price
2018 Jeep Wrangler JL All Rear 2-3 $2,995.95
2019 Jeep Wrangler JL All Rear 2-3 $2,995.95
2020 Jeep Wrangler JL All Rear 2-3 $2,995.95
2021 Jeep Wrangler JL All Rear 2-3 $2,995.95
2022 Jeep Wrangler JL All Rear 2-3 $2,995.95
2023 Jeep Wrangler JL All Rear 2-3 $2,995.95
2024 Jeep Wrangler JL All Rear 2-3 $2,995.95

TUNING & MANUALS

  • 01

    OWNER'S MANUAL

    Full overview manual including tuning, installation, and general owner's manual.

    Download Manual
  • 02

    Warranty

    Full warranty information for all FOX suspension products.

    View Warranty
  • 03

    Service

    Keep your suspension performing at factory levels. Get service or upgrade your suspension.

    Get Service
