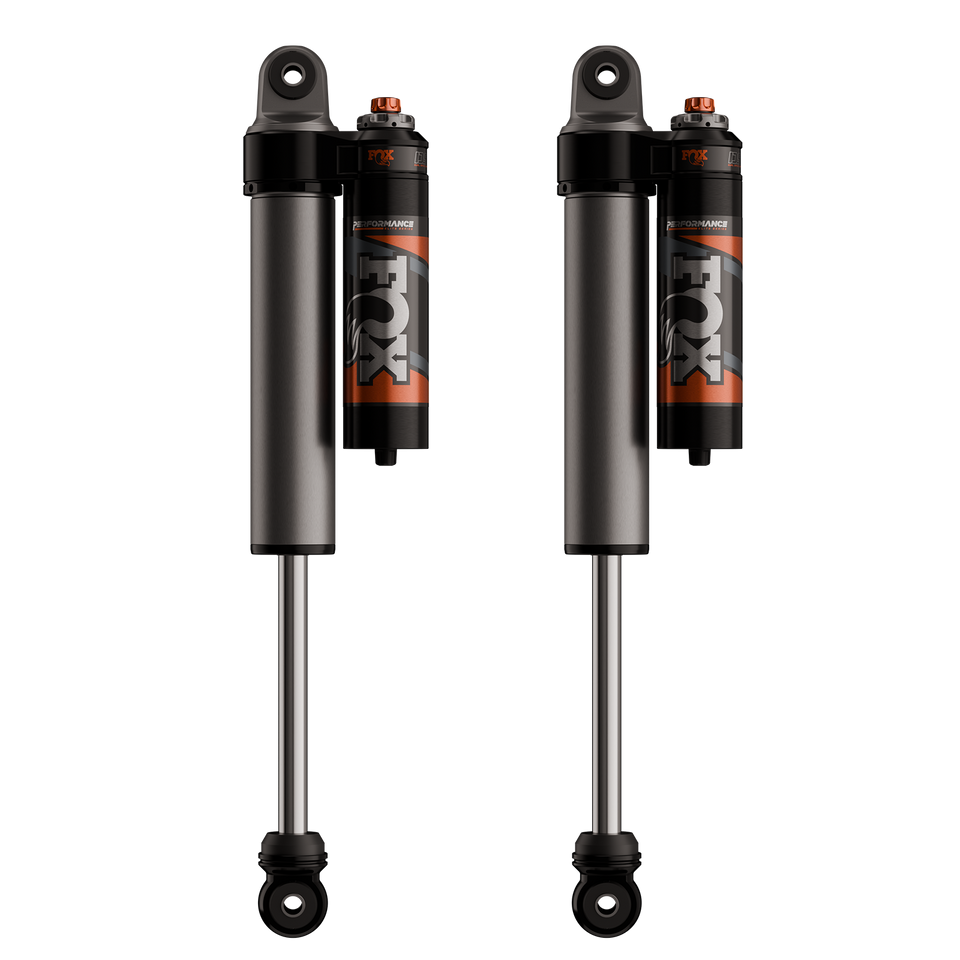

FORD SUPER DUTY | 2.5 PERFORMANCE ELITE SERIES
SKU: 883-26-098
FOX Performance Elite 2.5 Series shocks for the Ford Super Duty provide an excellent all-around ride in a bolt-on solution. FOX shocks are designed and engineered to increase the vehicle’s capability off-road and improve stability while towing.
FOX shocks provide the versatility required to cruise your commute, manage hauls, and navigate the backcountry in comfort and control.
| PART NUMBER | 883-26-098 |
| FEATURES |
2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster Application-specific springs 7/8" hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal Rear shaft boot to protect against roost spray |
| SERIES | Performance Elite |
| TRAVEL | 12.48 |
| BODY | 2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body |
| RESERVOIR | 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster |
| SHAFT | 7/8" hard chrome plated steel shafts |
| PISTON | Larger, high flow piston increases bottom-out resistance and damping in any environment |
| VALVING | Vehicle-specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 32.33 |
| COMPRESSED LENGTH | 19.85 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 883-26-098 |
| FEATURES |
2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster Application-specific springs 7/8" hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal Rear shaft boot to protect against roost spray |
| SERIES | Performance Elite |
| TRAVEL | 12.48 |
| BODY | 2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body |
| RESERVOIR | 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster |
| SHAFT | 7/8" hard chrome plated steel shafts |
| PISTON | Larger, high flow piston increases bottom-out resistance and damping in any environment |
| VALVING | Vehicle-specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 32.33 |
| COMPRESSED LENGTH | 19.85 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
