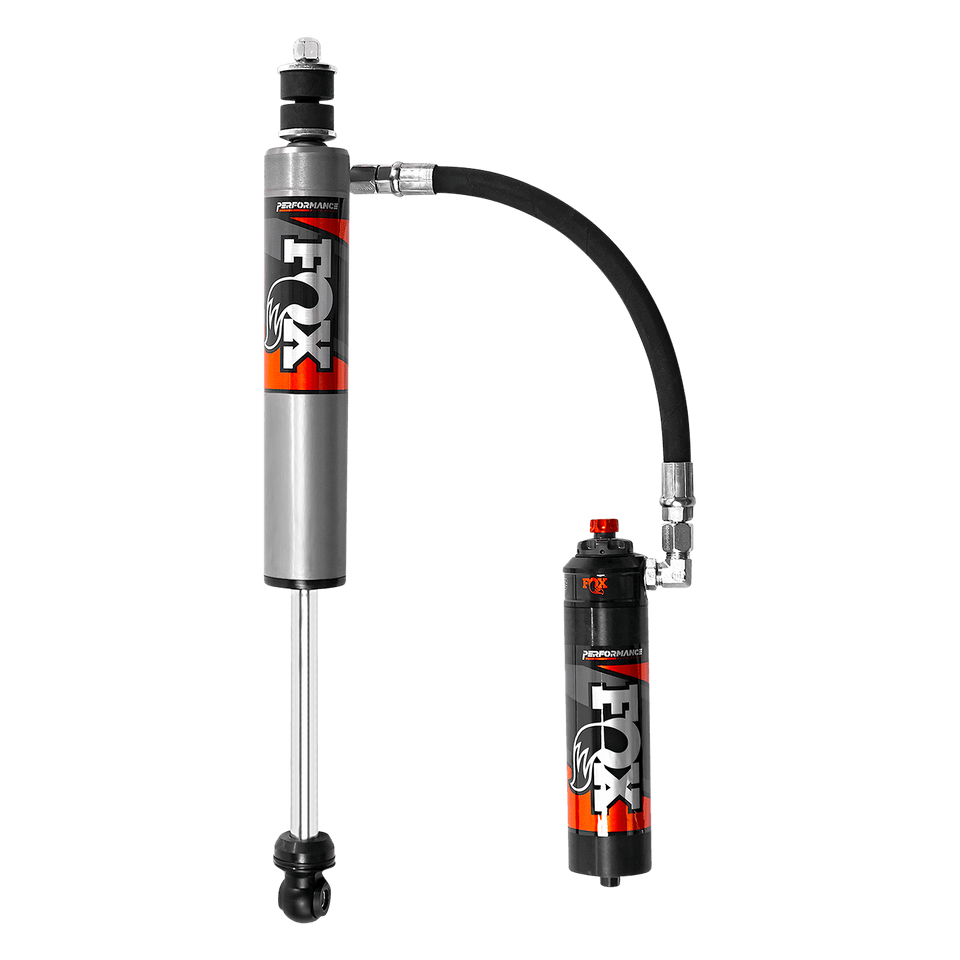

FORD SUPER DUTY | 2.5 PERFORMANCE ELITE SERIES
SKU: 883-26-097
FOX Performance Elite 2.5 Series shocks for the Ford Super Duty provide an excellent all-around ride in a bolt-on solution. FOX shocks are designed and engineered to increase the vehicle’s capability off-road and improve stability while towing.
FOX shocks provide the versatility required to cruise your commute, manage hauls, and navigate the backcountry in comfort and control.
| PART NUMBER | 883-26-097 |
| SERIES | Performance Elite |
| TRAVEL | 8.78 |
| BODY | 2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body |
| BODY PLATING | Hard-anodized for a durable finish |
| RESERVOIR | 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 7/8" hard chrome plated steel shafts |
| PISTON | Larger, high flow piston increases bottom-out resistance and damping in any environment |
| VALVING | Vehicle-specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
| EXTENDED LENGTH | 24.79 |
| COMPRESSED LENGTH | 16.01 |
| TOP MOUNT | Stem Top |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | 2005-2019: 2.5 inch lift | 2020-ON (Non-Tremor): 2.5-3.5 inch lift | Tremor: 1-1.5 inch lift |
