MERCEDES-BENZ SPRINTER 2500/3500 | 2.5 PERFORMANCE ELITE SERIES
The Mercedes Sprinter is known for its carrying capacity and versatility. FOX 2.5 Performance Elite Series shocks for the van dramatically improve handling and driver confidence even when the vehicle's packed with gear.

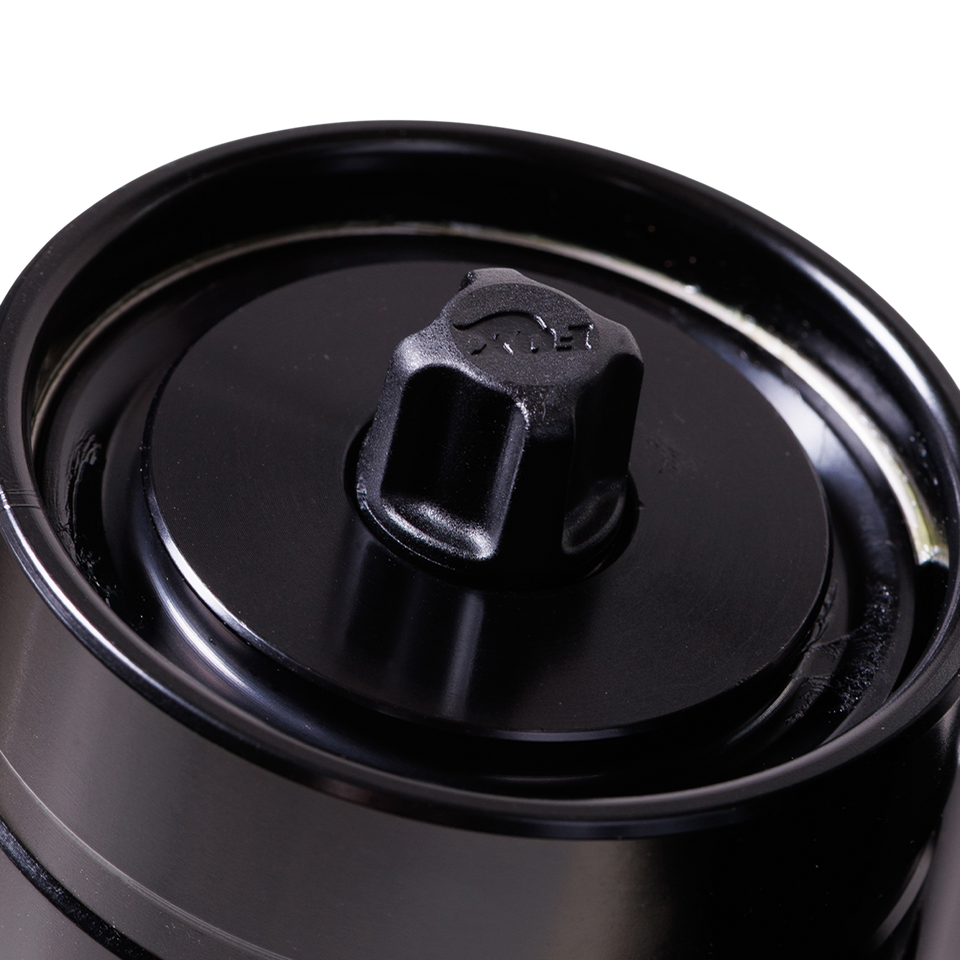

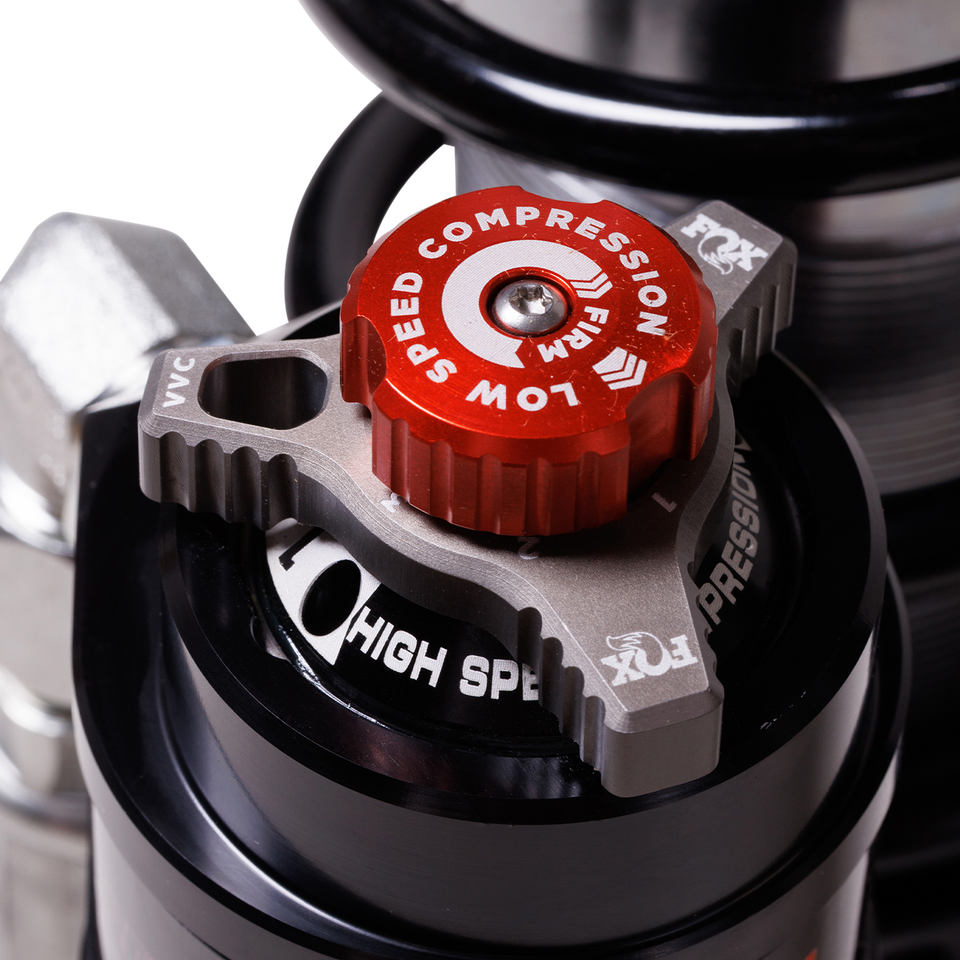

Zinc nickel coating prevents corrosion and wear of the 2.5-inch steel bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.
DSC EVO features Variable Valve Control (VVC) on the high compression circuit. VVC doesn't add preload to the shim stakc to adjust high-speed damping but rather changes the leverage ratio of the shims as they flex.
883-16-000 Also Fits
| Year | Make | Model | Drive Type | Position | Comments | Price |
|---|---|---|---|---|---|---|
| 2015 | Mercedes-Benz | Sprinter 2500 | 4WD | Front | Lift: 0-0.5 | $0.00 |
| 2016 | Mercedes-Benz | Sprinter 2500 | 4WD | Front | Lift: 0-0.5 | $0.00 |
| 2017 | Mercedes-Benz | Sprinter 2500 | 4WD | Front | Lift: 0-0.5 | $0.00 |
| 2018 | Mercedes-Benz | Sprinter 2500 | 4WD | Front | Lift: 0-0.5 | $0.00 |
| PART NUMBER | 883-16-000 |
| FEATURES |
2.5" custom drawn-over-mandrel (DOM) and CNC-machined Zinc nickel coated steel body. 28mm hard chromed steel shafts Vehicle-specific tuning maximizes performance External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | OEM |
| FITMENT NOTES | If using OEM wheels and Tires, a minimum of 16mm wheel spacer is required to clearance FOX strut assembly. If using larger than stock tires, a minimum of 16mm wheel spacer PLUS the below is required to clearance FOX strut assembly 2500/3500 single rear wheel models: Front wheels must have maximum 6.200 inch backspacing. 3500 dual rear wheel models: Front wheels must have maximum 8.000 inch backspacing. |
| PART NUMBER | 883-16-000 |
| FEATURES |
2.5" custom drawn-over-mandrel (DOM) and CNC-machined Zinc nickel coated steel body. 28mm hard chromed steel shafts Vehicle-specific tuning maximizes performance External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | OEM |
| FITMENT NOTES | If using OEM wheels and Tires, a minimum of 16mm wheel spacer is required to clearance FOX strut assembly. If using larger than stock tires, a minimum of 16mm wheel spacer PLUS the below is required to clearance FOX strut assembly 2500/3500 single rear wheel models: Front wheels must have maximum 6.200 inch backspacing. 3500 dual rear wheel models: Front wheels must have maximum 8.000 inch backspacing. |
883-16-000 Also Fits
| Year | Make | Model | Drive Type | Position | Comments | Price |
|---|---|---|---|---|---|---|
| 2015 | Mercedes-Benz | Sprinter 2500 | 4WD | Front | Lift: 0-0.5 | $0.00 |
| 2016 | Mercedes-Benz | Sprinter 2500 | 4WD | Front | Lift: 0-0.5 | $0.00 |
| 2017 | Mercedes-Benz | Sprinter 2500 | 4WD | Front | Lift: 0-0.5 | $0.00 |
| 2018 | Mercedes-Benz | Sprinter 2500 | 4WD | Front | Lift: 0-0.5 | $0.00 |
